Description

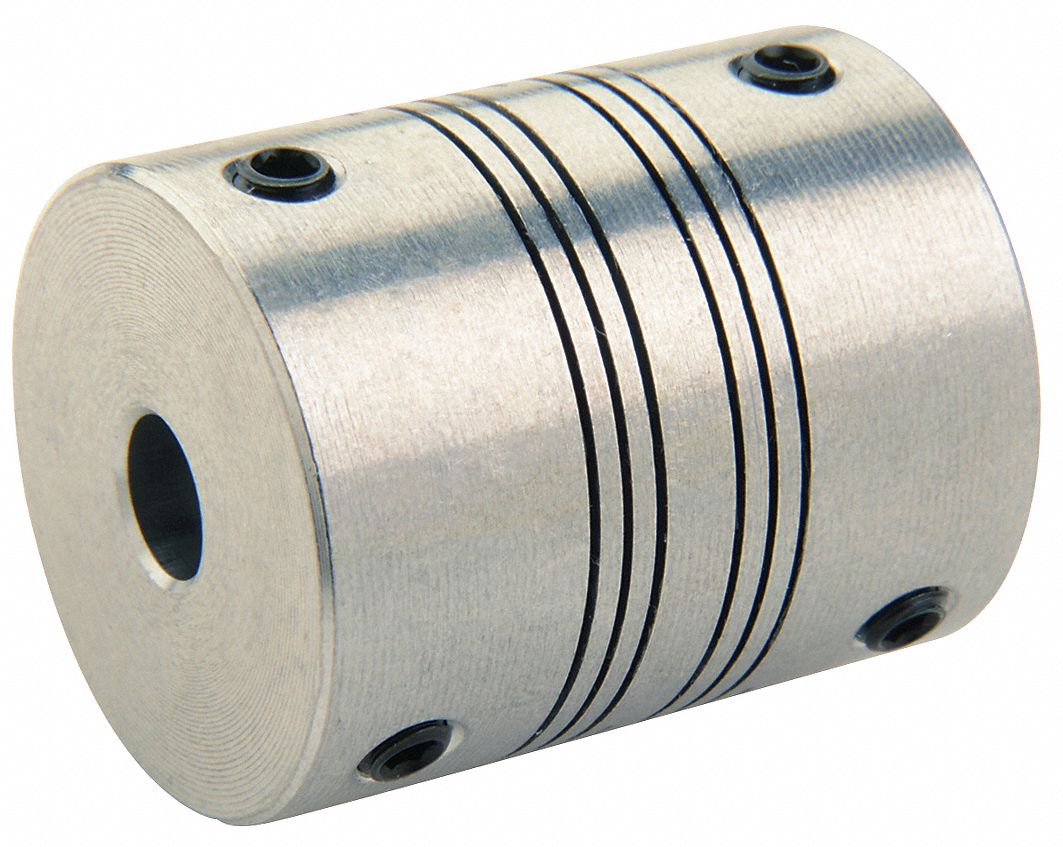

Motion Control Coupling Angular Misalignment 3 Degrees Bore Diameter 1 12 mm Bore Diameter 2 12 mm Coupling Material Aluminum Coupling Outside Diameter 28.
6 mm Maximum Speed 6 000 RPM Maximum Torque 3.
84 N-m Axial Motion 0.
25 mm Overall Length 38.
1 mm Parallel Misalignment 0.
38 mm System of Measurement Metric Different Bore Sizes No Torsional Stiffness 0.
51 N-m/Deg Bore Type Round Shaft Locking Type Set Screw Number of Beams 4 Length Through Bore 2 17.
6 mm
Features
Extra Information
Processing Time:
2-3 days
