Description

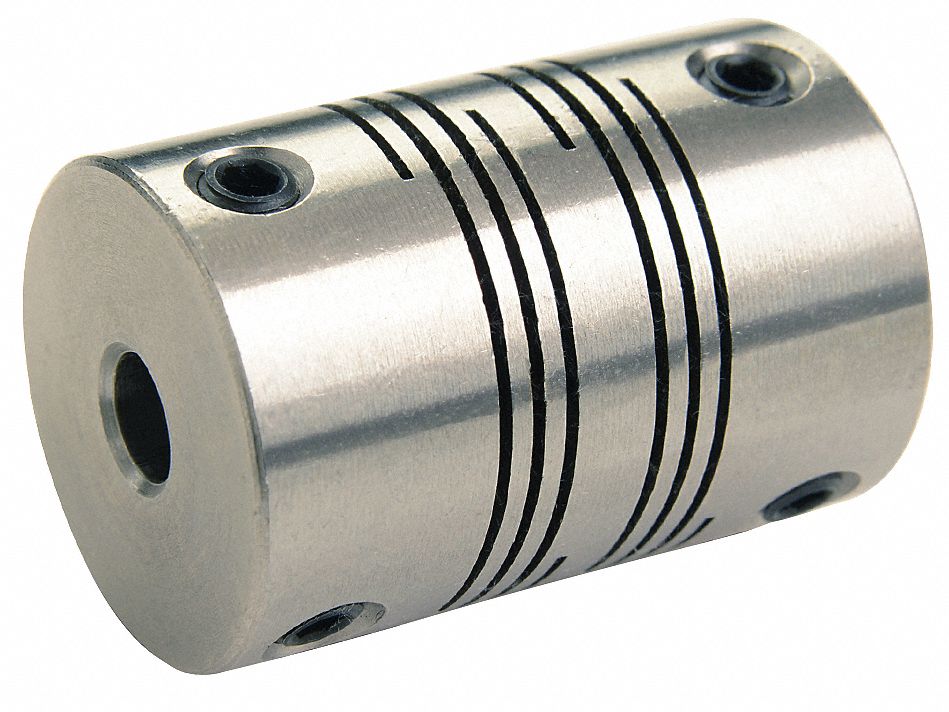

Motion Control Coupling Angular Misalignment 3 Degrees Bore Diameter 1 12 mm Bore Diameter 2 10 mm Coupling Material Stainless Steel Coupling Outside Diameter 38.
1 mm Maximum Speed 6 000 RPM Maximum Torque 21.
52 N-m Axial Motion 0.
38 mm Overall Length 57.
2 mm Parallel Misalignment 0.
76 mm System of Measurement Metric Different Bore Sizes Yes Torsional Stiffness 5.
26 N-m/Deg Bore Type Round Shaft Locking Type Set Screw Number of Beams 6 Length Through Bore 2 27.
3 mm
