Description

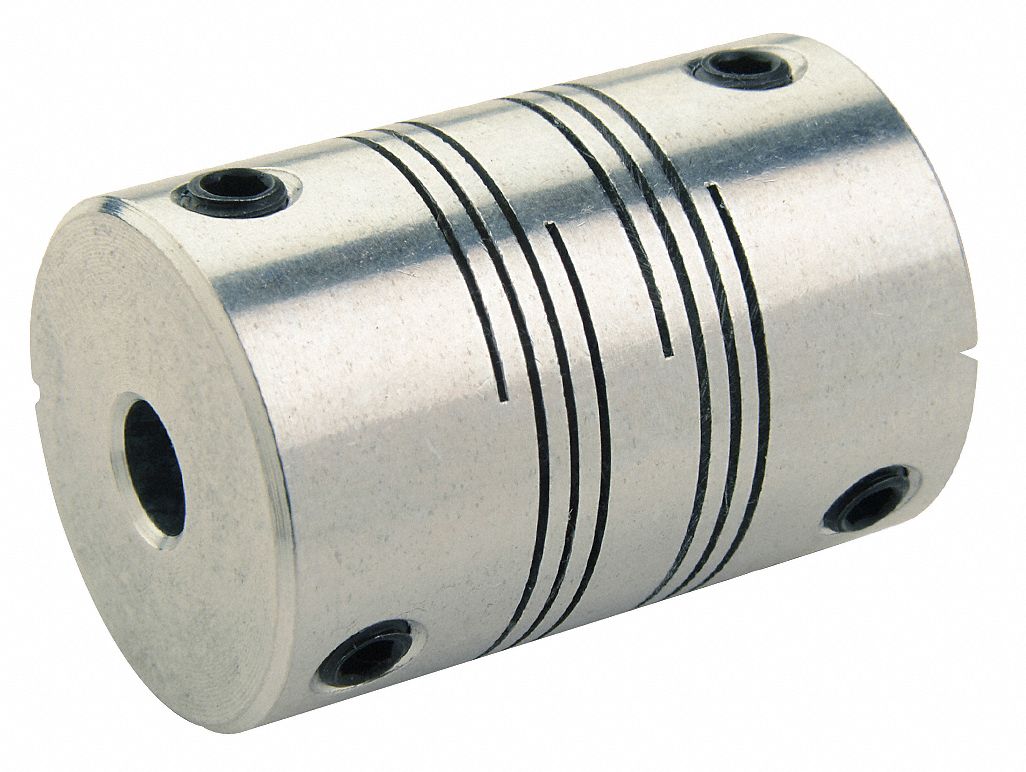

Motion Control Coupling Angular Misalignment 3 Degrees Bore Diameter 1 11 mm Bore Diameter 2 10 mm Coupling Material Aluminum Coupling Outside Diameter 31.
8 mm Maximum Speed 6 000 RPM Maximum Torque 5.
65 N-m Axial Motion 0.
25 mm Overall Length 44.
5 mm Parallel Misalignment 0.
38 mm System of Measurement Metric Different Bore Sizes Yes Torsional Stiffness 1.
59 N-m/Deg Bore Type Round Shaft Locking Type Set Screw Number of Beams 6 Length Through Bore 2 21.
4 in
Features
Extra Information
Processing Time:
2-3 days
