Description

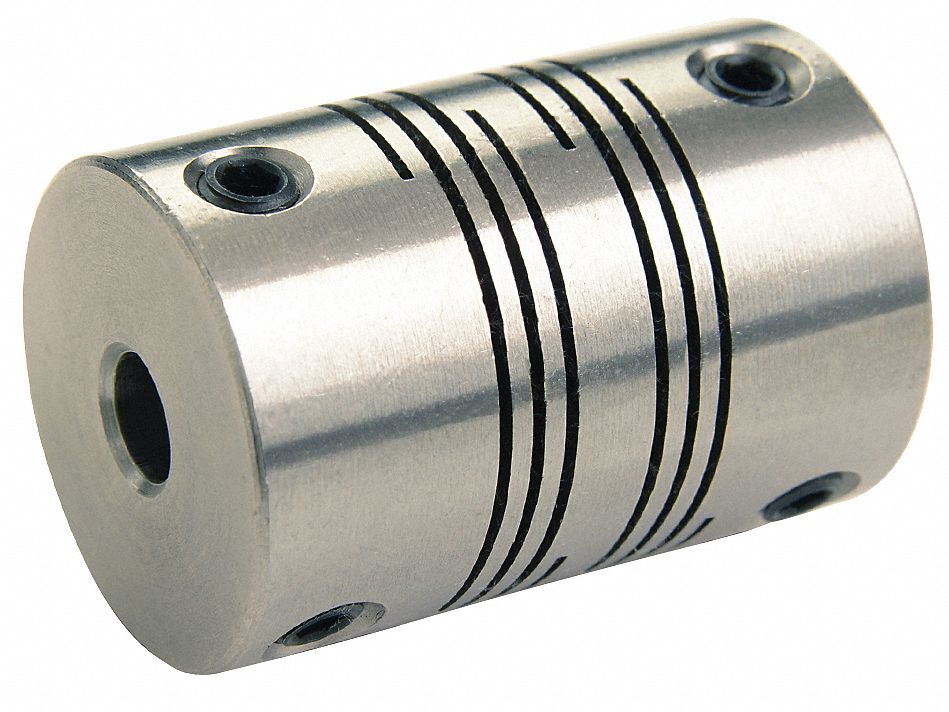

Motion Control Coupling Angular Misalignment 3 Degrees Bore Diameter 1 1/2 in Bore Diameter 2 1/2 in Coupling Material Aluminum Coupling Outside Diameter 1 1/4 in Maximum Speed 6 000 RPM Maximum Torque 50 in-lb Axial Motion 0.
01 in Overall Length 1 21/64 in Parallel Misalignment 0.
015 in System of Measurement Inch Different Bore Sizes No Torsional Stiffness 13.
89 in-lb/Deg Bore Type Round Shaft Locking Type Set Screw Number of Beams 6 Length Through Bore 2 0.
8 in
