Description

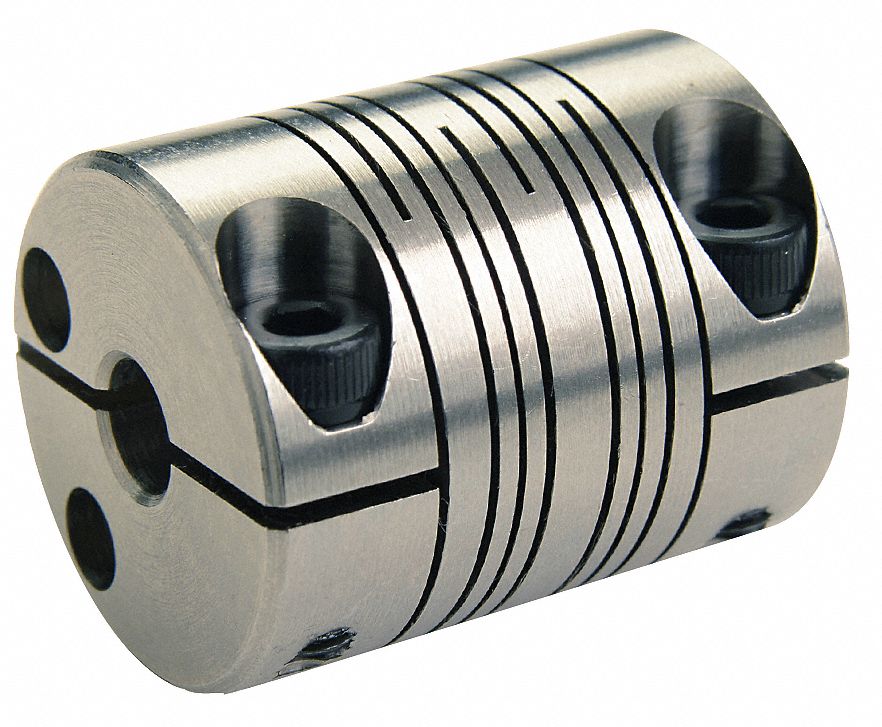

Motion Control Coupling Angular Misalignment 3 Degrees Bore Diameter 1 5 mm Bore Diameter 2 5 mm Coupling Material Stainless Steel Coupling Outside Diameter 20 mm Maximum Speed 6 000 RPM Maximum Torque 2 N-m Axial Motion 0.
12 mm Overall Length 20 mm Parallel Misalignment 0.
2 mm System of Measurement Metric Different Bore Sizes No Torsional Stiffness 1.
02 N-m/Deg Bore Type Round Shaft Locking Type Set Screw Number of Beams 4 Length Through Bore 2 9.
6 mm
Features
Extra Information
Processing Time:
2-3 days
