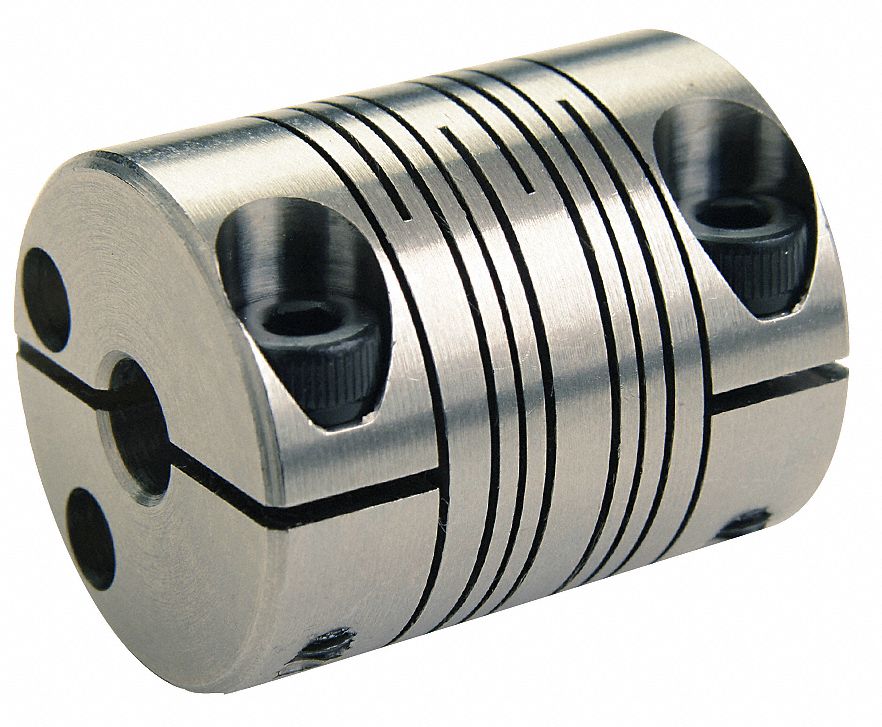

Motion Control Coupling Angular Misalignment 3 Degrees Bore Diameter 1 5 mm Bore Diameter 2 3 mm Coupling Material Aluminum Coupling Outside Diameter 15 mm Maximum Speed 6 000 RPM Maximum Torque 0.
81 N-m Axial Motion 0.
12 mm Overall Length 20 mm Parallel Misalignment 0.
2 mm System of Measurement Metric Different Bore Sizes Yes Torsional Stiffness 0.
19 N-m/Deg Bore Type Round Shaft Locking Type Set Screw Number of Beams 4 Length Through Bore 2 9.
6 mm
