Description

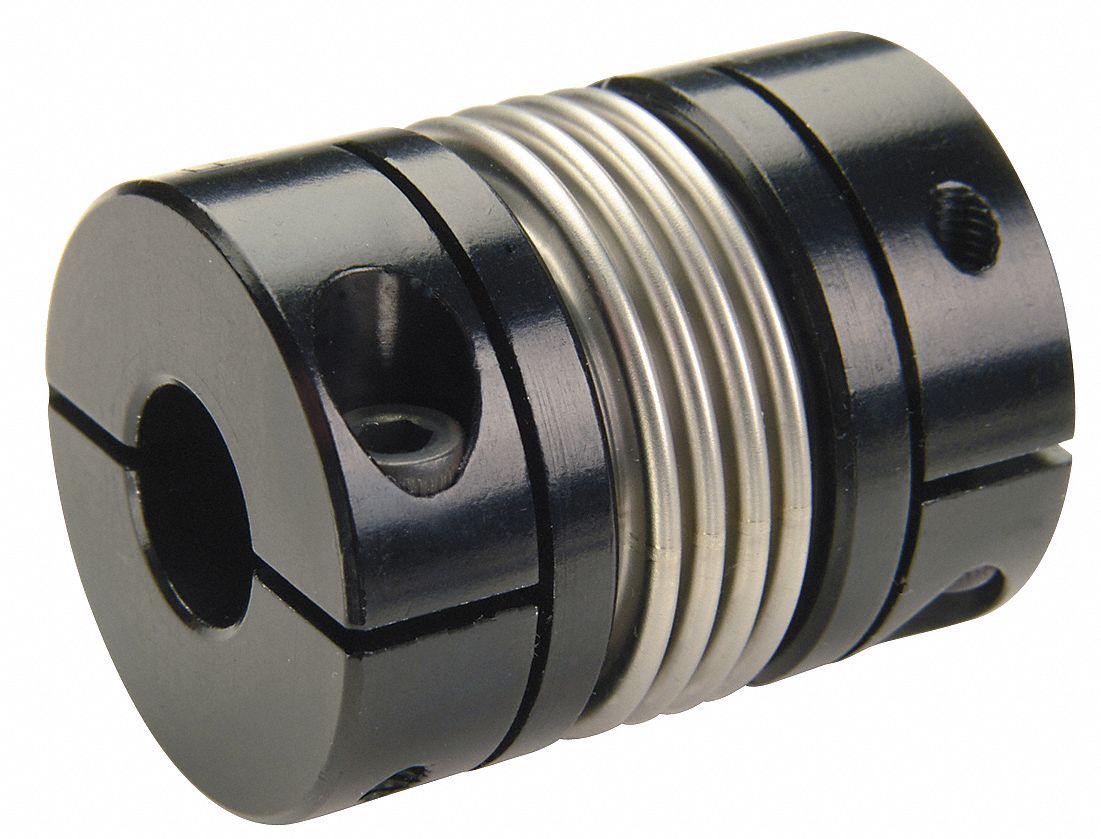

Motion Control Coupling Bore Diameter 1 8 mm Bore Diameter 2 8 mm Coupling Outside Diameter 25.
4 mm Maximum Speed 10 000 RPM Maximum Torque 6.
8 N-m Hub Material Aluminum Overall Length 33.
3 mm Shaft Locking Type Clamp On System of Measurement Metric Clearance Diameter 25.
4 mm Bellows Material Stainless Steel Different Bore Sizes No Length Through Bore 1 15.
9 mm Length Through Bore 2 15.
9 mm Parallel Misalignment 0.
1 mm Bore Type Round Dynamic Torque Non-Reversing 3.
4 N-m
Features
Extra Information
Processing Time:
2-3 days
