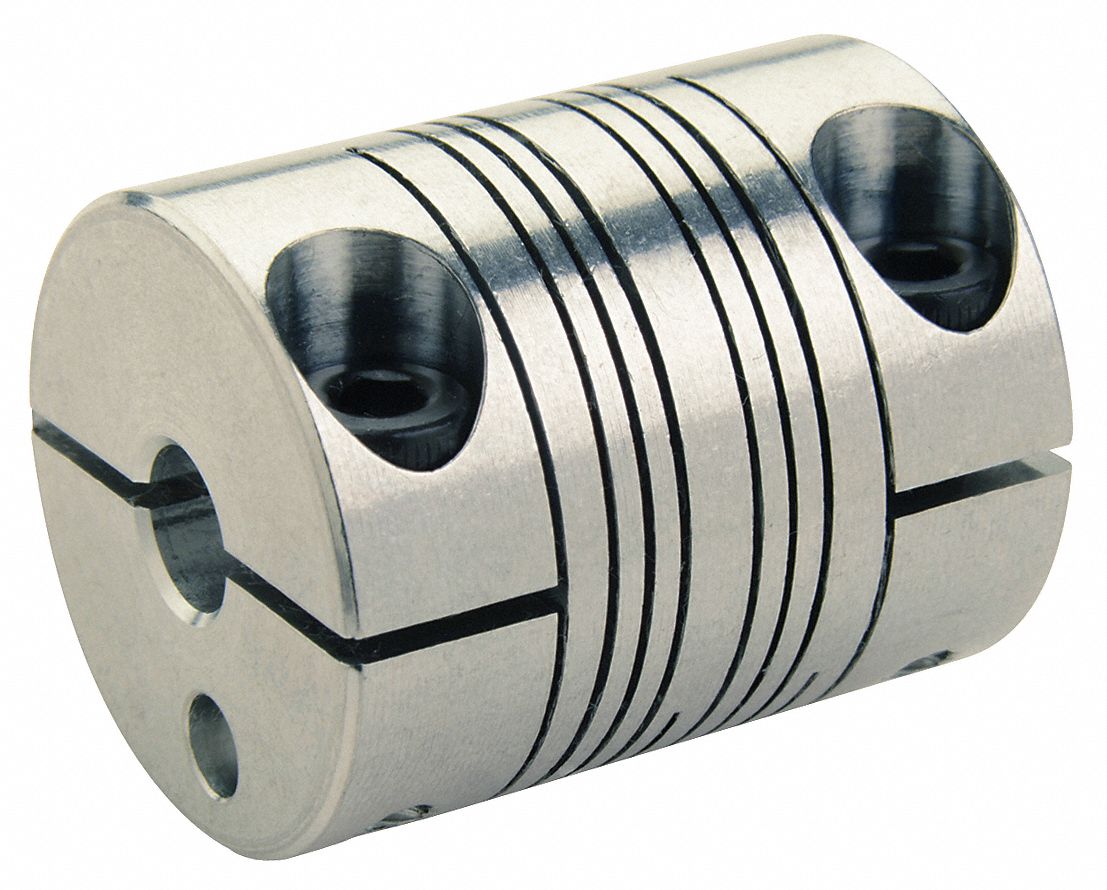

Motion Control Coupling Angular Misalignment 3 Degrees Bore Diameter 1 8 mm Bore Diameter 2 8 mm Coupling Material Aluminum Coupling Outside Diameter 28.
6 mm Maximum Speed 6 000 RPM Maximum Torque 4.
97 N-m Axial Motion 0.
25 mm Overall Length 38.
1 mm Parallel Misalignment 0.
38 mm System of Measurement Metric Different Bore Sizes No Torsional Stiffness 1.
06 N-m/Deg Bore Type Round Shaft Locking Type Clamp On Number of Beams 4 Length Through Bore 2 17.
6 mm
