Description

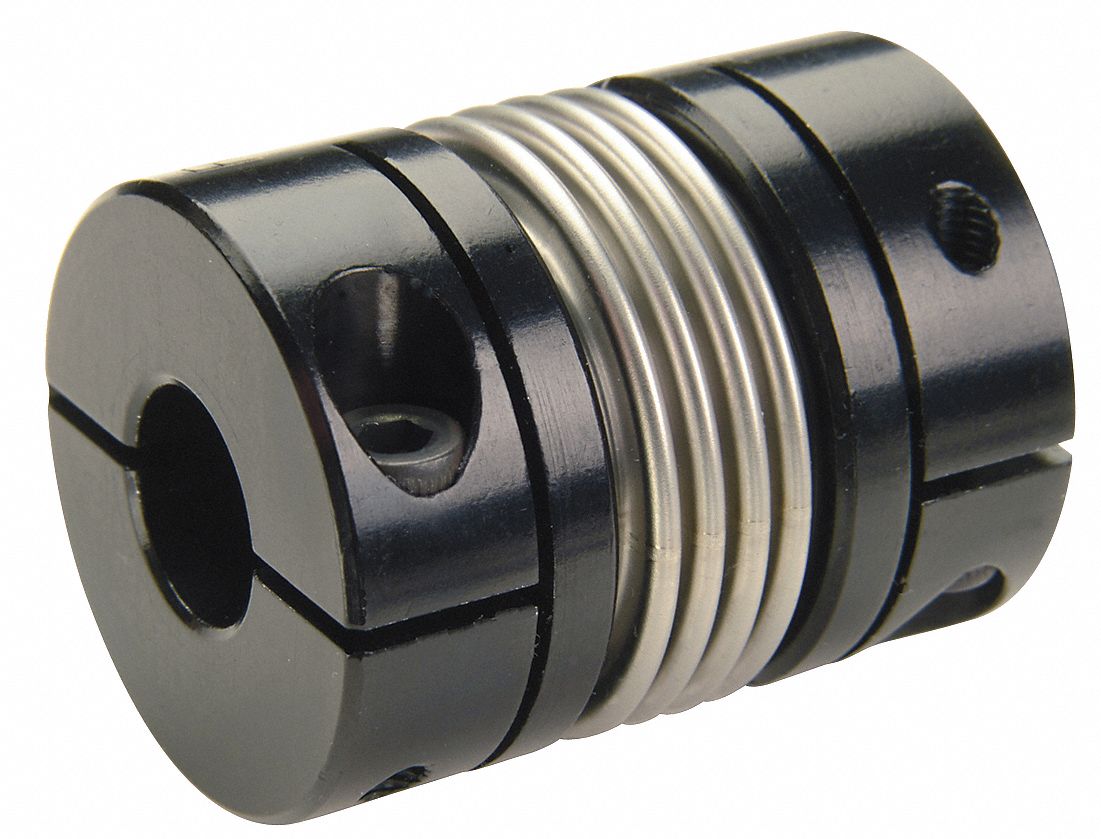

Motion Control Coupling Bore Diameter 1 6 mm Bore Diameter 2 6 mm Coupling Outside Diameter 19.
1 mm Maximum Speed 10 000 RPM Maximum Torque 4.
5 N-m Hub Material Aluminum Overall Length 30.
2 mm Shaft Locking Type Clamp On System of Measurement Metric Clearance Diameter 19.
1 mm Bellows Material Stainless Steel Different Bore Sizes No Length Through Bore 1 14.
5 mm Length Through Bore 2 14.
5 mm Parallel Misalignment 0.
1 mm Bore Type Round Dynamic Torque Non-Reversing 2.
25 N-m
