Description

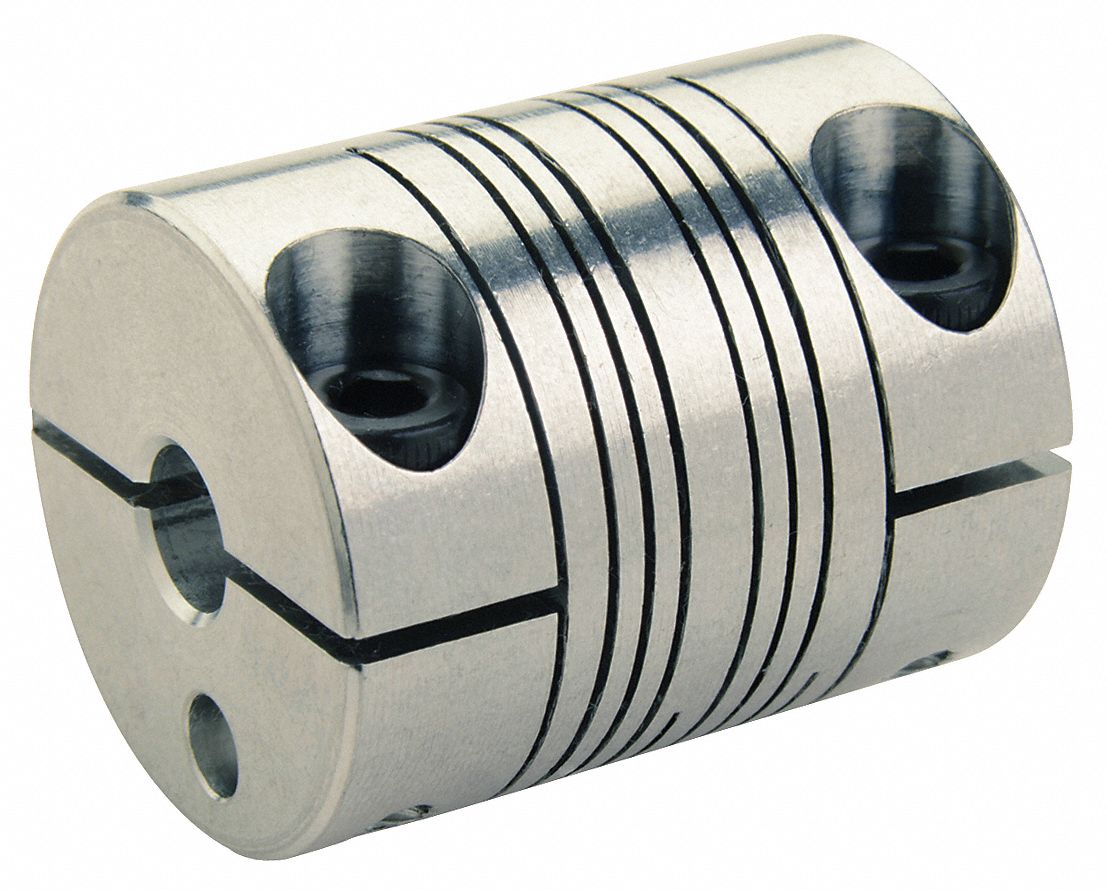

Motion Control Coupling Angular Misalignment 3 Degrees Bore Diameter 1 5/16 in Bore Diameter 2 1/4 in Coupling Material Aluminum Coupling Outside Diameter 1 1/8 in Maximum Speed 6 000 RPM Maximum Torque 44 in-lb Axial Motion 0.
01 in Overall Length 1 1/2 in Parallel Misalignment 0.
015 in System of Measurement Inch Different Bore Sizes Yes Torsional Stiffness 9.
09 in-lb/Deg Bore Type Round Shaft Locking Type Clamp On Number of Beams 4 Length Through Bore 2 0.
7 in
Features
Extra Information
Processing Time:
2-3 days
