Description

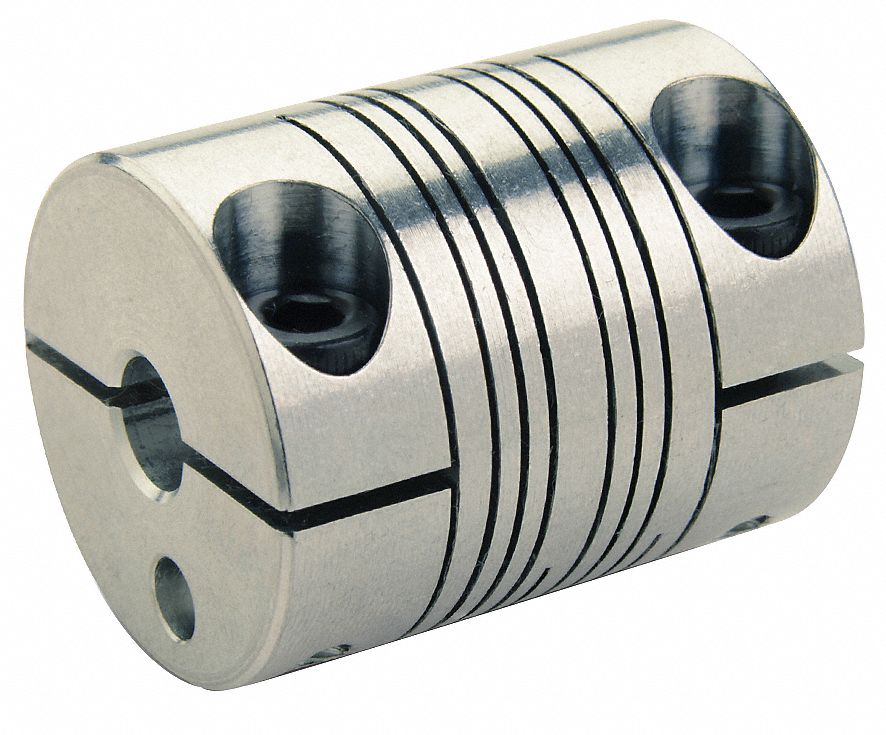

Motion Control Coupling Angular Misalignment 3 Degrees Bore Diameter 1 3 mm Bore Diameter 2 3 mm Coupling Material Stainless Steel Coupling Outside Diameter 19.
1 mm Maximum Speed 6 000 RPM Maximum Torque 3.
95 N-m Axial Motion 0.
13 mm Overall Length 22.
9 mm Parallel Misalignment 0.
2 mm System of Measurement Metric Different Bore Sizes No Torsional Stiffness 1.
33 N-m/Deg Bore Type Round Shaft Locking Type Clamp On Number of Beams 4 Length Through Bore 2 10.
7 mm
Features
Extra Information
Processing Time:
2-3 days
