Description

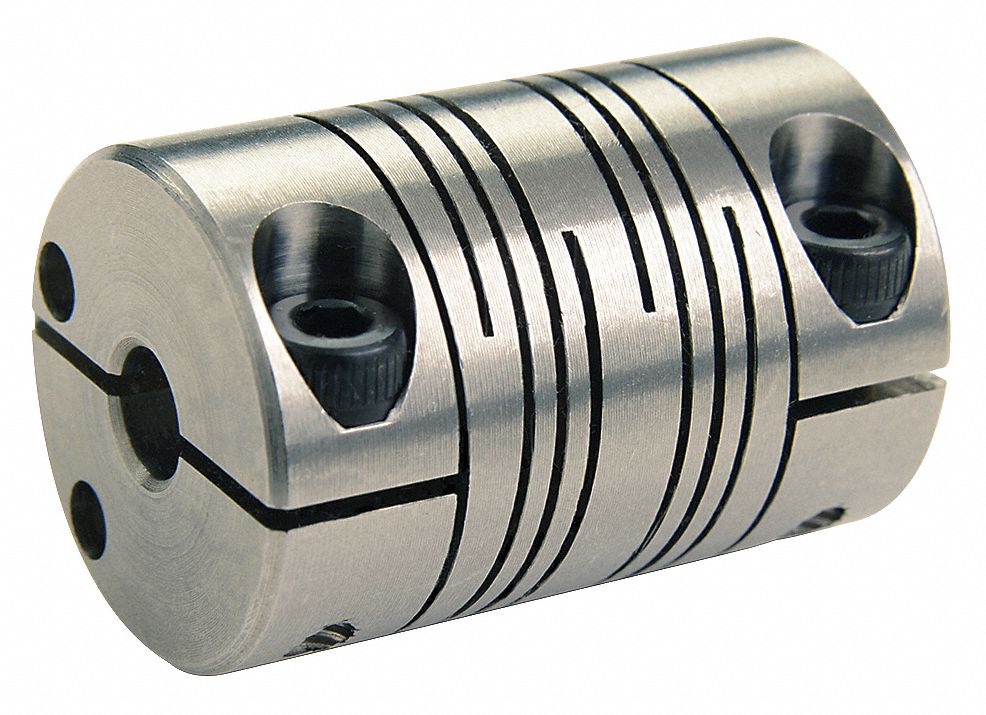

Motion Control Coupling Angular Misalignment 3 Degrees Bore Diameter 1 3/16 in Bore Diameter 2 3/16 in Coupling Material Stainless Steel Coupling Outside Diameter 3/4 in Maximum Speed 6 000 RPM Maximum Torque 41 in-lb Axial Motion 0.
005 in Overall Length 1 1/4 in Parallel Misalignment 0.
008 in System of Measurement Inch Different Bore Sizes No Torsional Stiffness 12.
66 in-lb/Deg Bore Type Round Shaft Locking Type Clamp On Number of Beams 6 Length Through Bore 2 0.
6 in
Features
Extra Information
Processing Time:
2-3 days
