Description

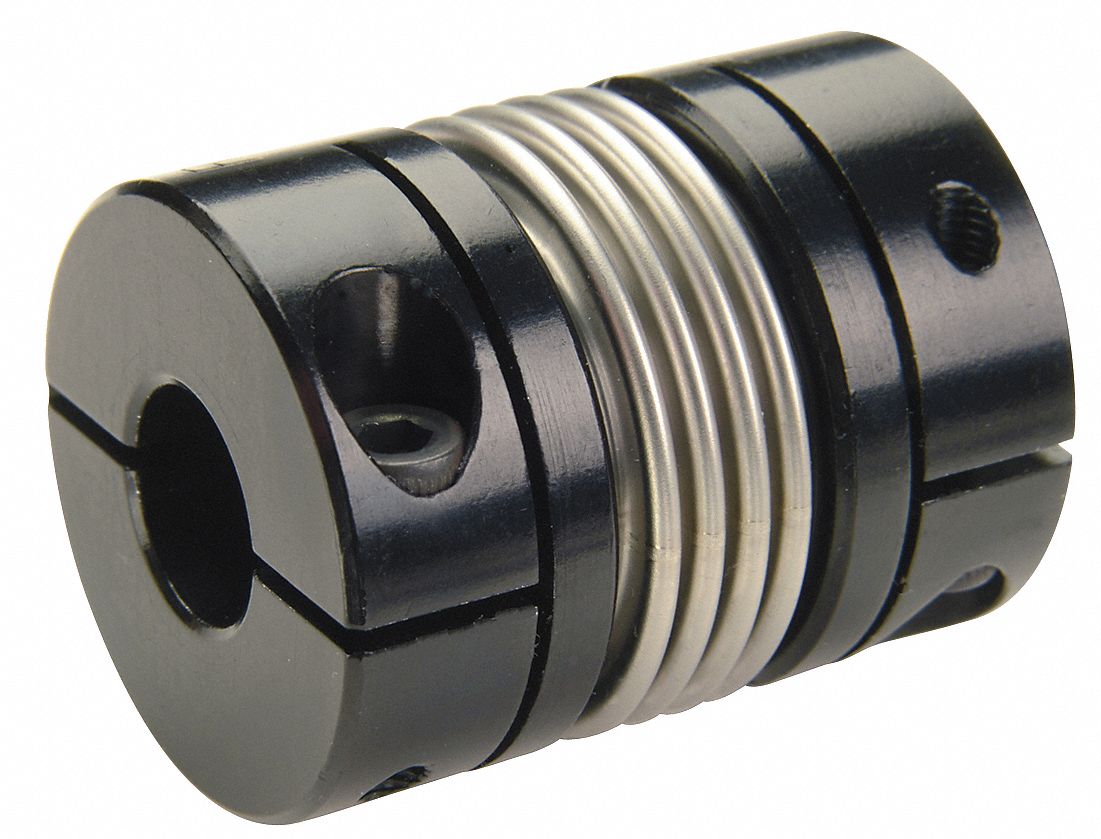

Motion Control Coupling Bore Diameter 1 12 mm Bore Diameter 2 12 mm Coupling Outside Diameter 33.
3 mm Maximum Speed 10 000 RPM Maximum Torque 13.
6 N-m Hub Material Aluminum Overall Length 42.
9 mm Shaft Locking Type Clamp On System of Measurement Metric Clearance Diameter 33.
3 mm Bellows Material Stainless Steel Different Bore Sizes No Length Through Bore 1 20.
4 mm Length Through Bore 2 20.
4 mm Parallel Misalignment 0.
15 mm Bore Type Round Dynamic Torque Non-Reversing 6.
8 N-m
Features
Extra Information
Processing Time:
2-3 days
