Description

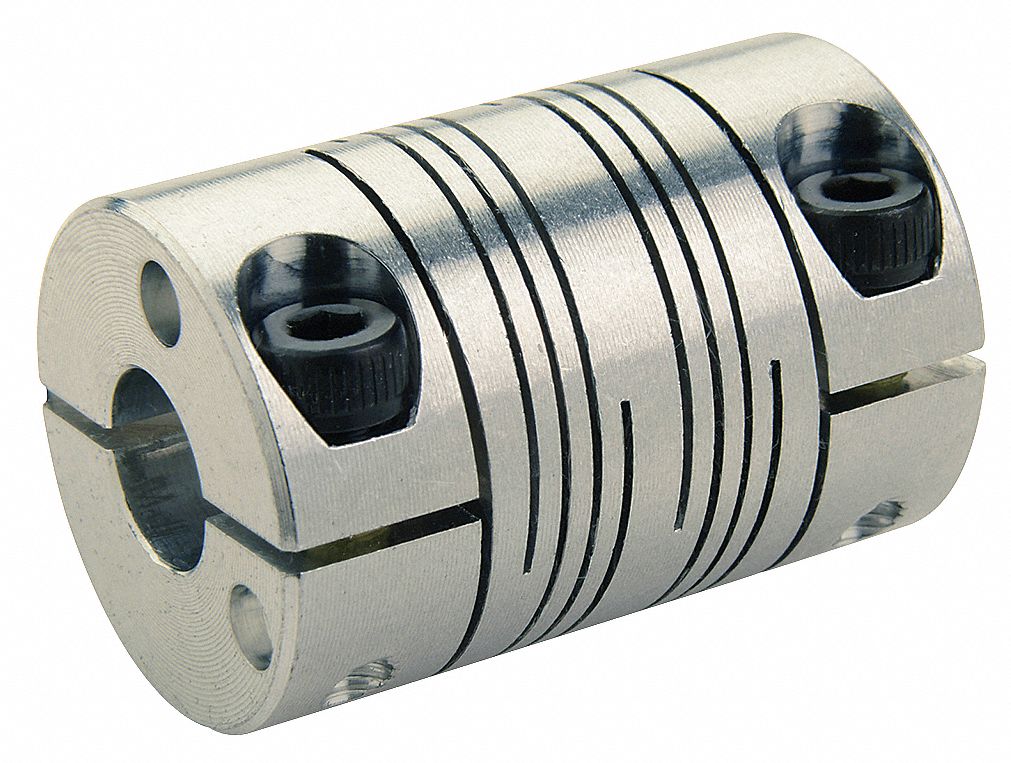

Motion Control Coupling Angular Misalignment 3 Degrees Bore Diameter 1 10 mm Bore Diameter 2 9 mm Coupling Material Stainless Steel Coupling Outside Diameter 25.
4 mm Maximum Speed 6 000 RPM Maximum Torque 5.
66 N-m Axial Motion 0.
25 mm Overall Length 38.
1 mm Parallel Misalignment 0.
38 mm System of Measurement Metric Different Bore Sizes Yes Torsional Stiffness 2.
44 N-m/Deg Bore Type Round Shaft Locking Type Clamp On Number of Beams 6 Length Through Bore 2 18.
3 mm
Features
Extra Information
Processing Time:
2-3 days
