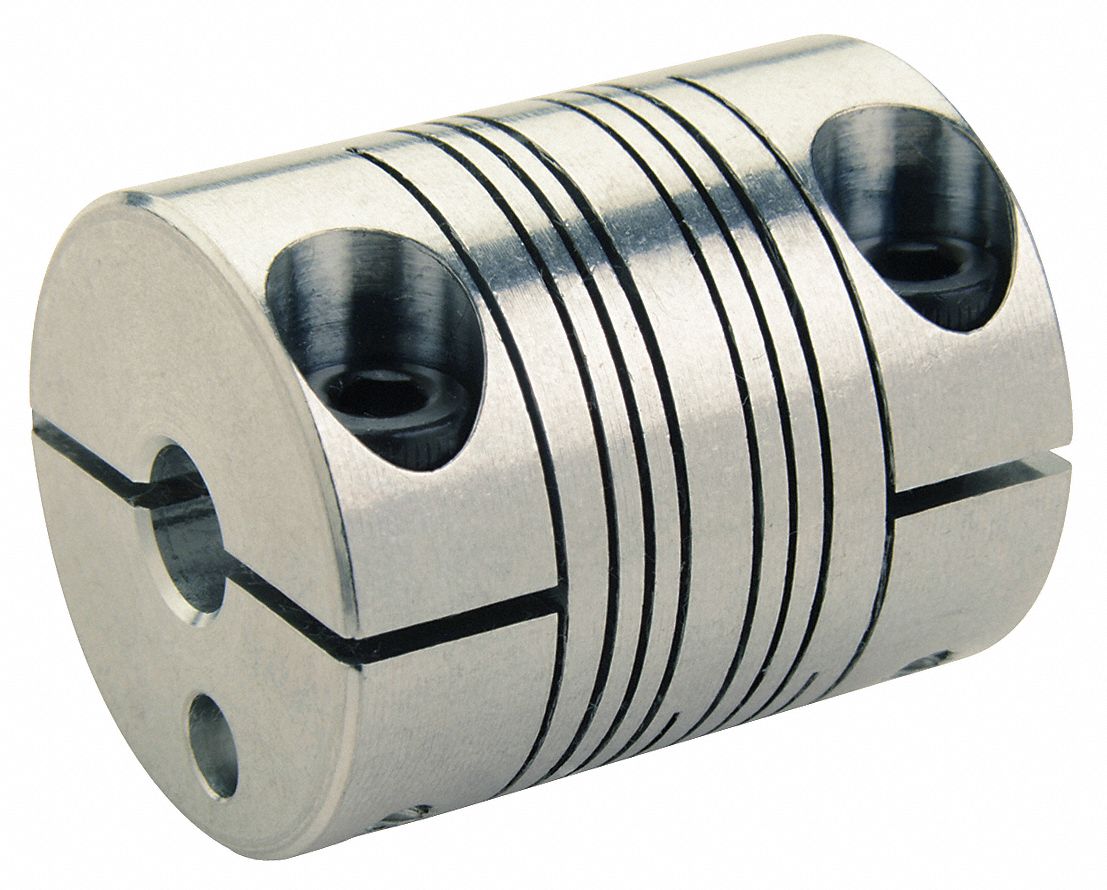

Motion Control Coupling Angular Misalignment 3 Degrees Bore Diameter 1 10 mm Bore Diameter 2 8 mm Coupling Material Aluminum Coupling Outside Diameter 25.
4 mm Maximum Speed 6 000 RPM Maximum Torque 3.
39 N-m Axial Motion 0.
25 mm Overall Length 31.
8 mm Parallel Misalignment 0.
38 mm System of Measurement Metric Different Bore Sizes Yes Torsional Stiffness 0.
56 N-m/Deg Bore Type Round Shaft Locking Type Clamp On Number of Beams 4 Length Through Bore 2 14.
7 mm
