Description

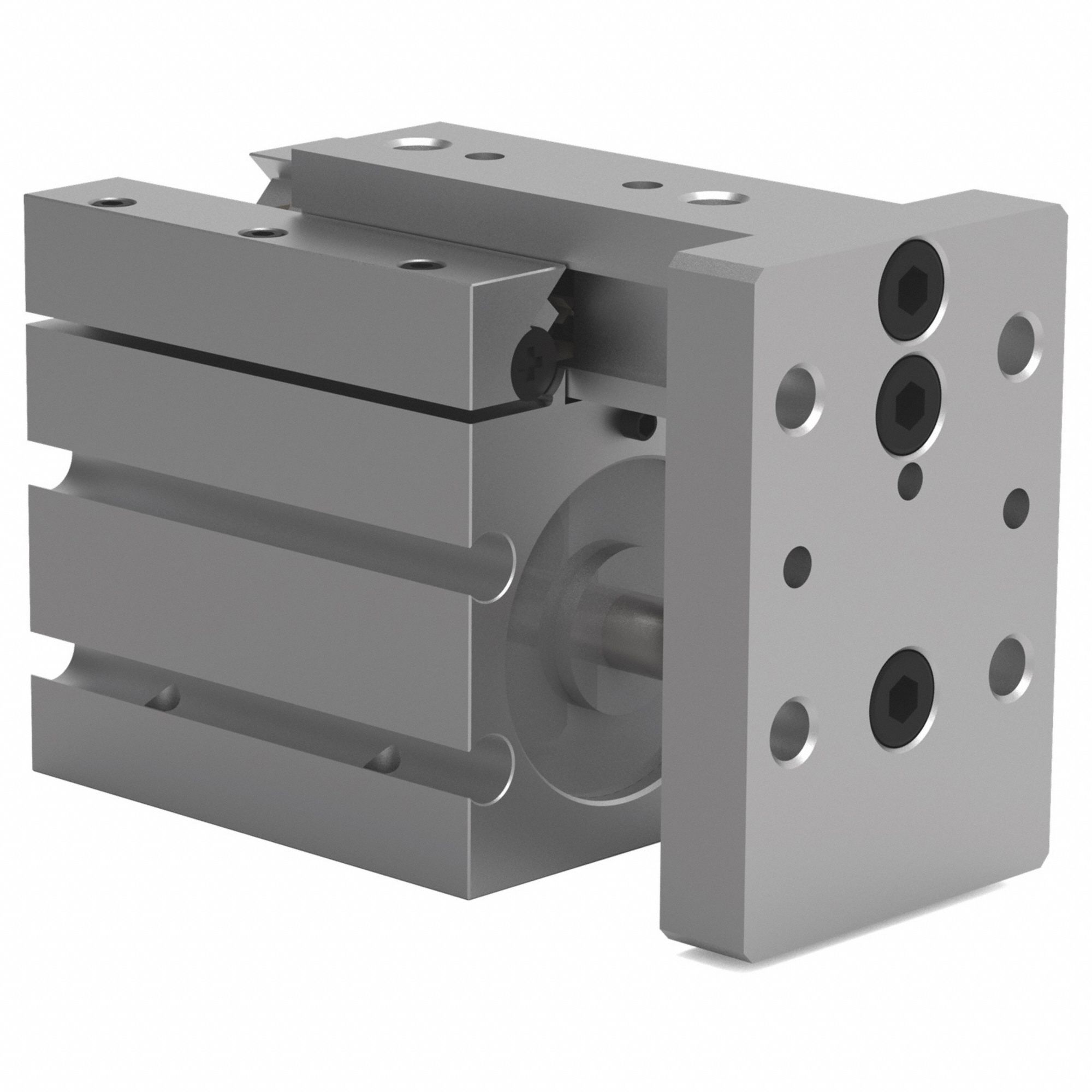

Mini Power Slide Maximum Stroke 1/2 in Cylinder Bore Diameter 3/4 in Maximum Payload 0.
5 lb Series MPS Thrust Force @ 100 psi 44 lbf Size 2 M Maximum Operating Pressure 100 psi Minimum Operating Pressure 20 psi Seal Material Buna-N Maximum Operating Temperature 180 Degrees F Minimum Operating Temperature -30 Degrees F Accuracy +/-0.
0001 in Repeatability +/-0.
01 in Maximum Actuation Time 0.
12 sec System of Measurement Inch
