Description

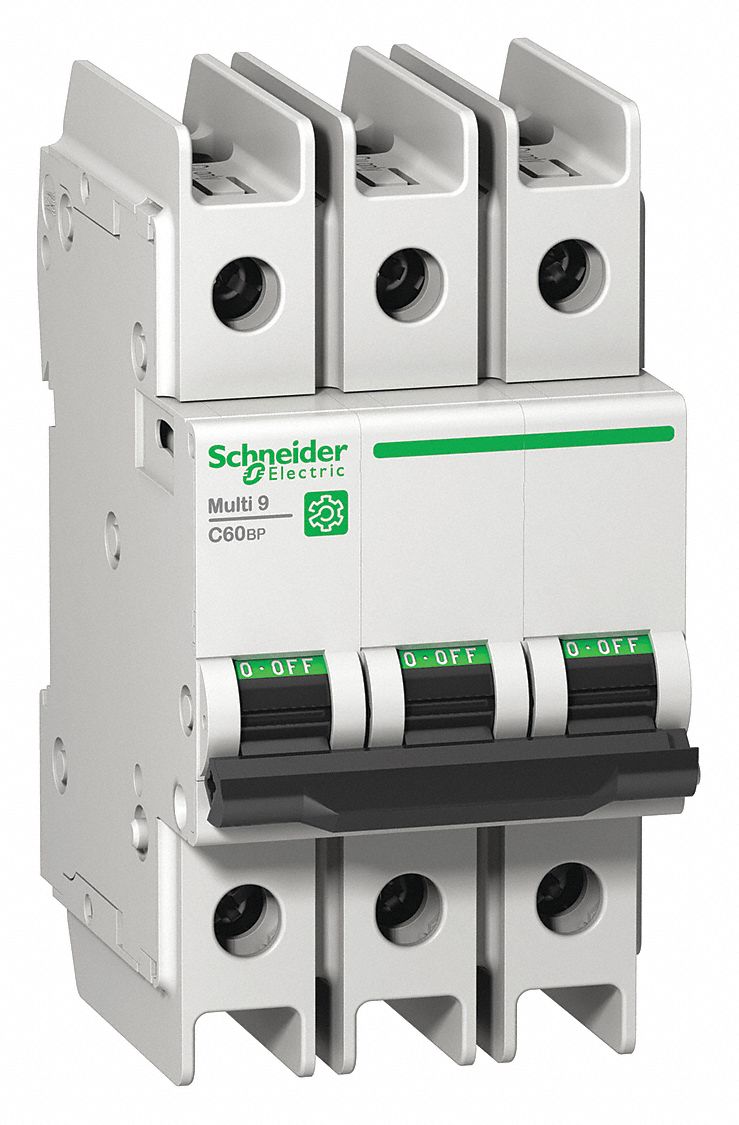

IEC Miniature Circuit Breaker Amps 6 A Number of Poles 3 Curve Type D AC Voltage Rating 240/277/480V AC DC Voltage Rating Not Rated Max AIR Rating 14kA at 120/240V AC Phase 3 Meets UL Type UL 489 Terminal Connection Screw Clamp Series C60BP Trip Type Thermal Magnetic Circuit Breaker Mounting Style DIN Rail Application Branch Circuit Protection Min Wire Size 18 AWG Max Wire Size 8 AWG Length 4.
06 in Width 2.
13 in Depth 2.
83 in Frame Size 63A/C60BP
Features
Extra Information
Processing Time:
2-3 days
