Description

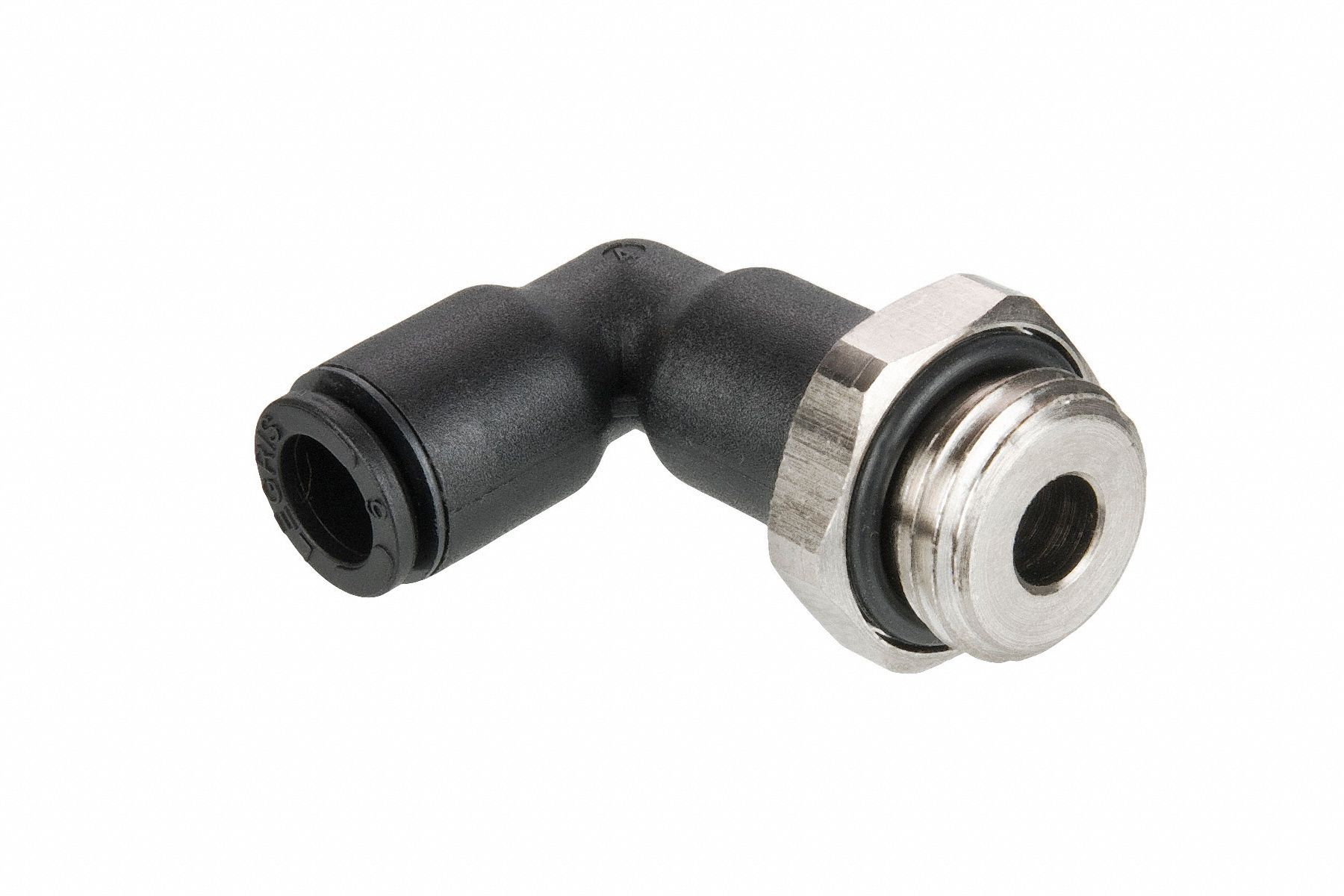

Metric Push-to-Connect Fitting Application Air Fitting Side A Connection Type Push-to-Connect Fitting Side B Connection Type BSPP Fitting Side A Pipe Size 10 mm Fitting Side B Tube Outer Diameter 10 mm Fitting Material Polymer Fitting Thread Size G1/4 Color Black Maximum Operating Pressure 20 barg Maximum Operating Temperature 176 Degrees F Overall Length 40 1/2 mm Specific Fitting Shape 90 Degrees Elbow Adapter Release Type Ring
Features
Extra Information
Processing Time:
2-3 days
