Description

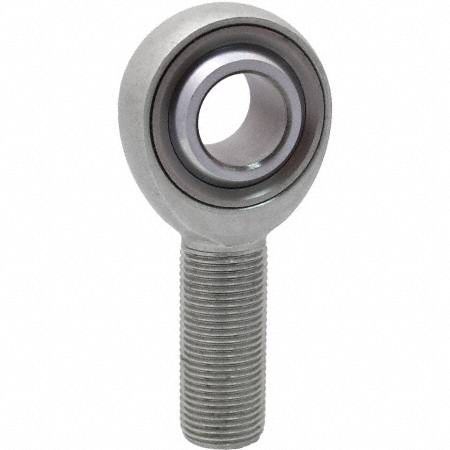

Rod End Bearing System of Measurement Metric Ball Stud Center Length 48 mm Bore Diameter 10 mm Head Outside Diameter 27 mm Head Width 10.
5 mm Shank Thread Length 29 mm Shank Thread Size M10-1.
5 Housing Material Chromoly Steel Shank Thread Direction Left Hand Application Automotive Ball Diameter 19.
05 mm Ball Material 52100 Steel Spherical Ball Material Grade 52100 Bore Diameter Tolerance -0.
012/+0.
065 mm Housing Material Finish Chrome Inner Ring Width 14 mm Load Direction Radial- Alternate Part Numbers- 806LC5- MHML10
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
MHML10
Manufacturer Part Number:
QA1
