Description

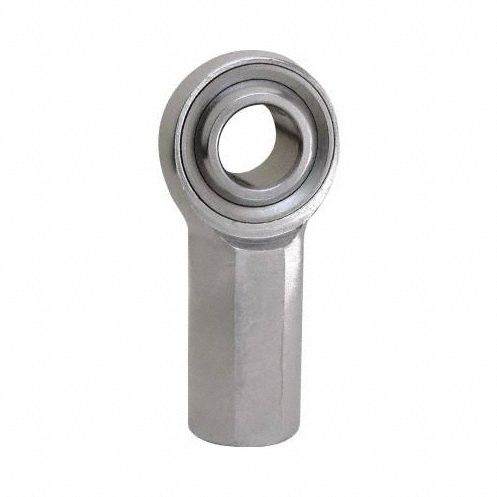

Rod End Bearing System of Measurement Metric Ball Stud Center Length 50 mm Bore Diameter 12 mm Head Outside Diameter 30 mm Head Width 12 mm Shank Thread Length 24 mm Shank Thread Size M12-1.
25 Housing Material Alloy Steel Shank Thread Direction Left Hand Application Automotive Ball Diameter 22.
23 mm Ball Material 52100 Steel Spherical Ball Material Grade 52100 Bore Diameter Tolerance -0.
012/+0.
065 mm Inner Ring Width 16 mm Load Direction Radial Maximum Ball Swivel 17 Degrees - Alternate Part Numbers- 806L43- MHFL12T1
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
MHFL12T-1
Manufacturer Part Number:
QA1
