Description

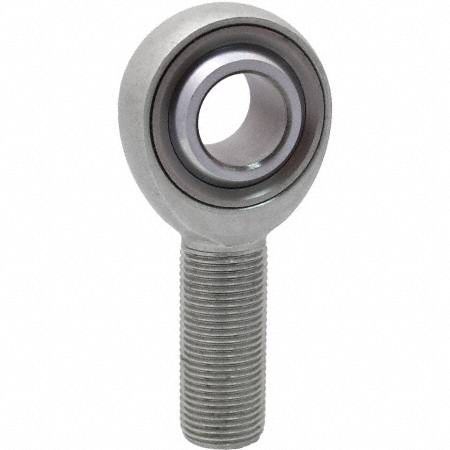

Rod End Bearing System of Measurement Metric Ball Stud Center Length 36 mm Bore Diameter 6 mm Head Outside Diameter 19 mm Head Width 7 mm Shank Thread Length 22 mm Shank Thread Size M6-1.
0 Housing Material Chromoly Steel Shank Thread Direction Right Hand Application Automotive Ball Diameter 12.
7 mm Ball Material 52100 Steel Spherical Ball Material Grade 52100 Bore Diameter Tolerance -0.
012/+0.
065 mm Housing Material Finish Chrome Inner Ring Width 9 mm Load Direction Radial- Alternate Part Numbers- 806LF8- MHMR6T
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
MHMR6T
Manufacturer Part Number:
QA1
