Description

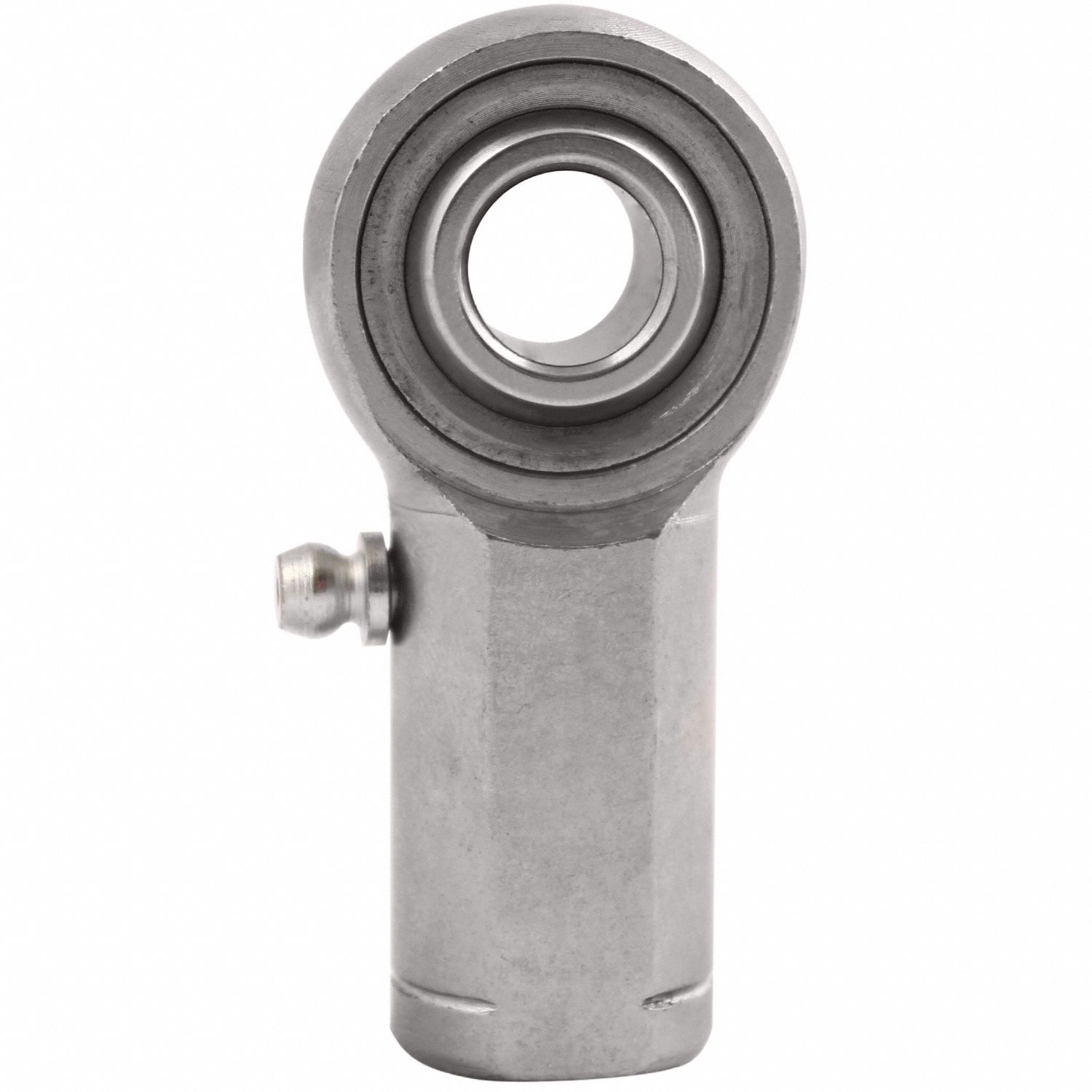

Rod End Bearing System of Measurement Metric Ball Stud Center Length 77 mm Bore Diameter 20 mm Head Outside Diameter 46 mm Head Width 18 mm Shank Thread Length 40 mm Shank Thread Size M20-2.
5 Housing Material Alloy Steel Shank Thread Direction Left Hand Application Automotive Ball Diameter 34.
93 mm Ball Material 52100 Steel Spherical Ball Material Grade 52100 Bore Diameter Tolerance -0.
012/+0.
065 mm Inner Ring Width 25 mm Load Direction Radial Lubrication Openings Grease Fitting- Alternate Part Numbers- 806L61- MHFL20Z1
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
MHFL20Z-1
Manufacturer Part Number:
QA1
