Description

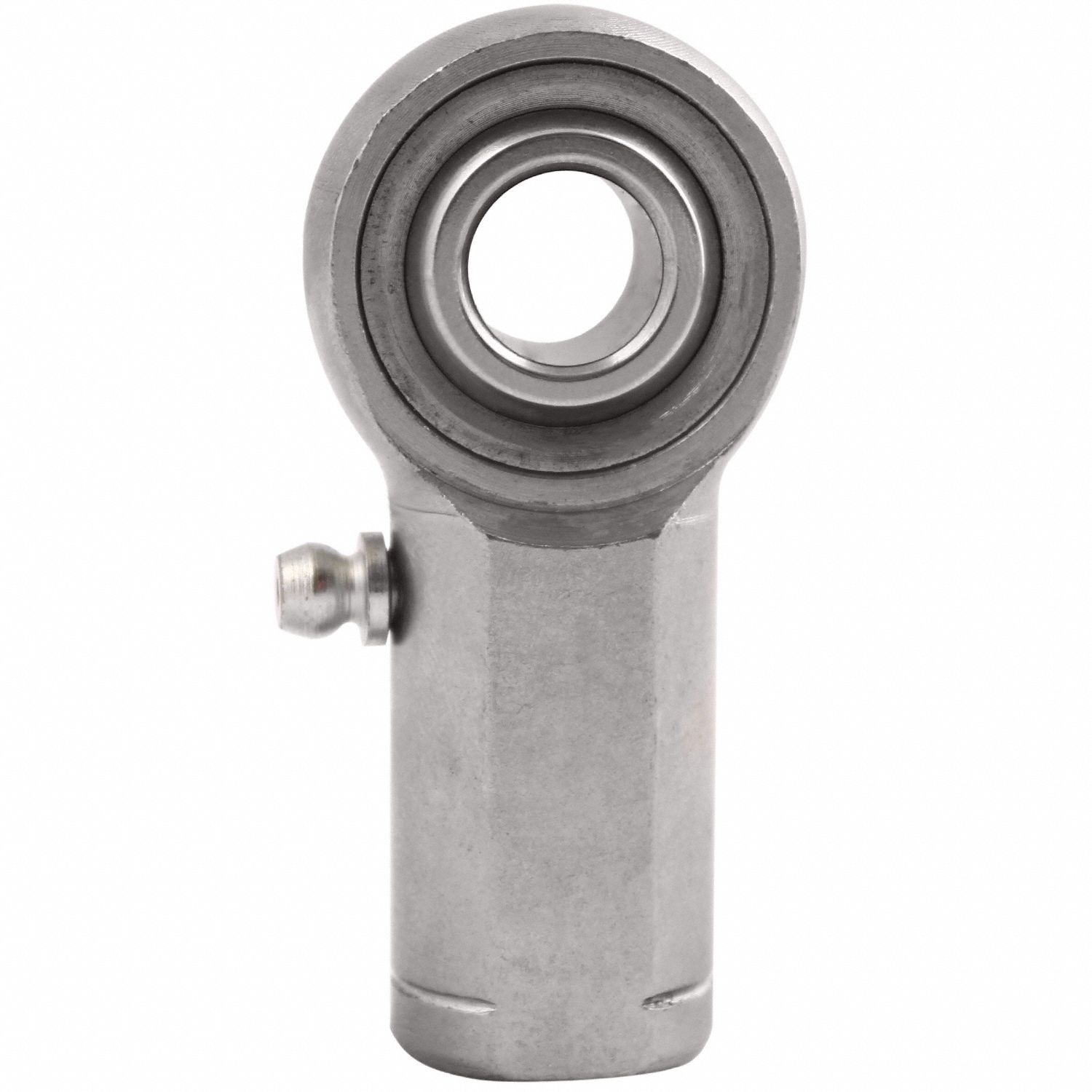

Rod End Bearing System of Measurement Metric Ball Stud Center Length 36 mm Bore Diameter 8 mm Head Outside Diameter 22.
25 mm Head Width 8.
75 mm Shank Thread Length 17 mm Shank Thread Size M8-1.
0 Housing Material Alloy Steel Shank Thread Direction Left Hand Application Automotive Ball Diameter 15.
88 mm Ball Material 52100 Steel Spherical Ball Material Grade 52100 Bore Diameter Tolerance -0.
012/+0.
065 mm Inner Ring Width 12 mm Load Direction Radial- Alternate Part Numbers- 806L33- MHFL8Z1
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
MHFL8Z-1
Manufacturer Part Number:
QA1
