Description
RATED FOR 150 PSI @ 70°F.
MISC CONNECTOR NOTES:
STEAM: Steam connectors should be double
braided regardless of operational pressure.
NSF 372 - LEAD FREE: The wetted surface of this
product contacted by water contains less than
one quarter of one percent (0.25%) of lead by
weight. Material complies with state codes and
standards, where applicable, requiring reduced
lead content.

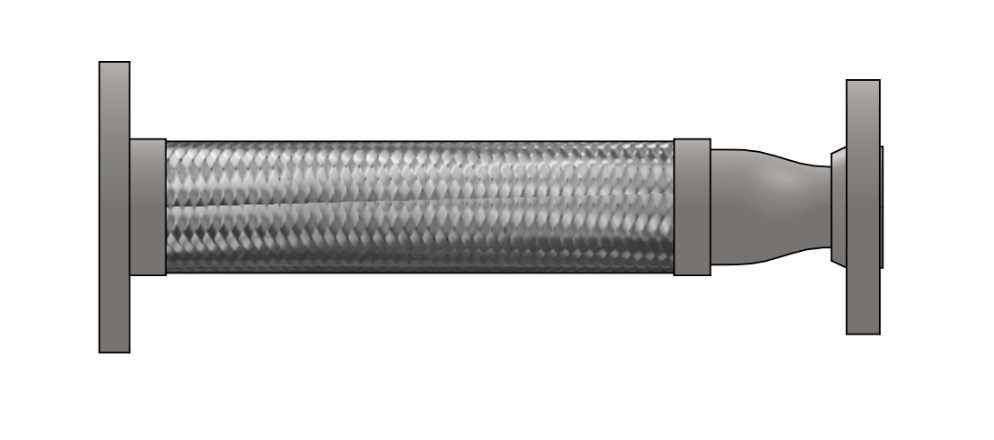

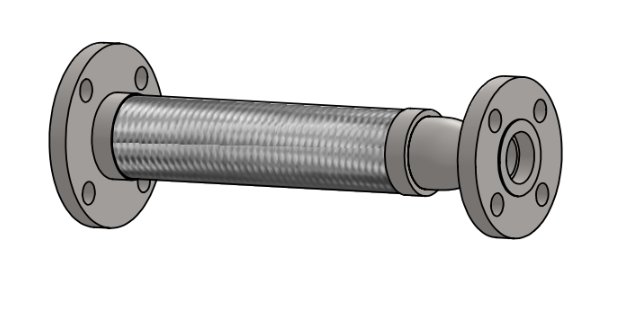

PART NUMBER PIPE SIZE OAL MOVEMENT* BRAID LAYERS
SF10A57A02120097 2" x 1.25" 9.8125" .125" SINGLE
HOSE MATERIAL BRAID MATERIAL FITTING 1 FITTING 2 FITTING MATERIAL
321 SS 304 SS PLATE FLANGE 150# RF FLANGE 300# CS/SCH 40
