Description

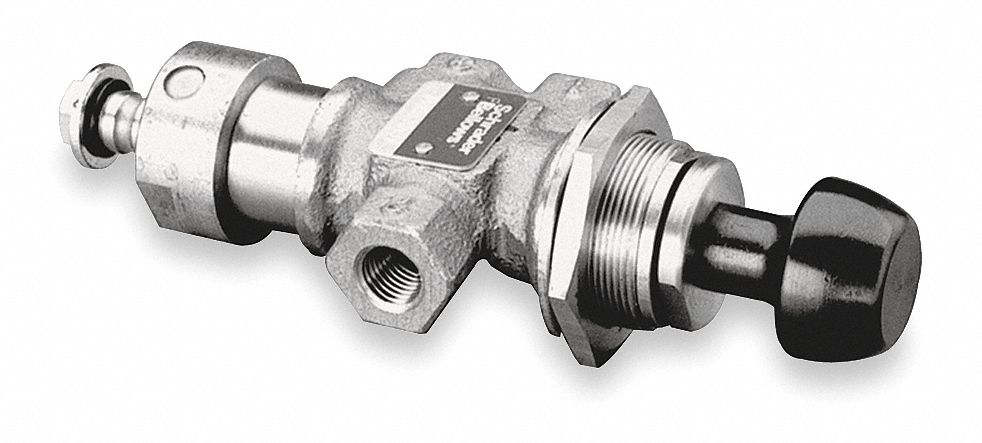

Manual Air Control Valve Valve Ways and Positions 3-Way/2-Position Valve Port Size 3/4 in Connection NPT Valve Actuator / Return Knob / Detent Max CFM - Valves 9.
5 cfm Valve Max Pressure Rating 200 psi Valve Temp Range -15 Degrees to 200 Degrees F Center Position Closed Coefficient of Volume 9.
5 Body Material Bronze Overall Length 10 1/2 in Overall Height 3 in Overall Width 3 1/2 in Series MO Manual Air Control Valve
Features
Extra Information
Processing Time:
2-3 days
