Description

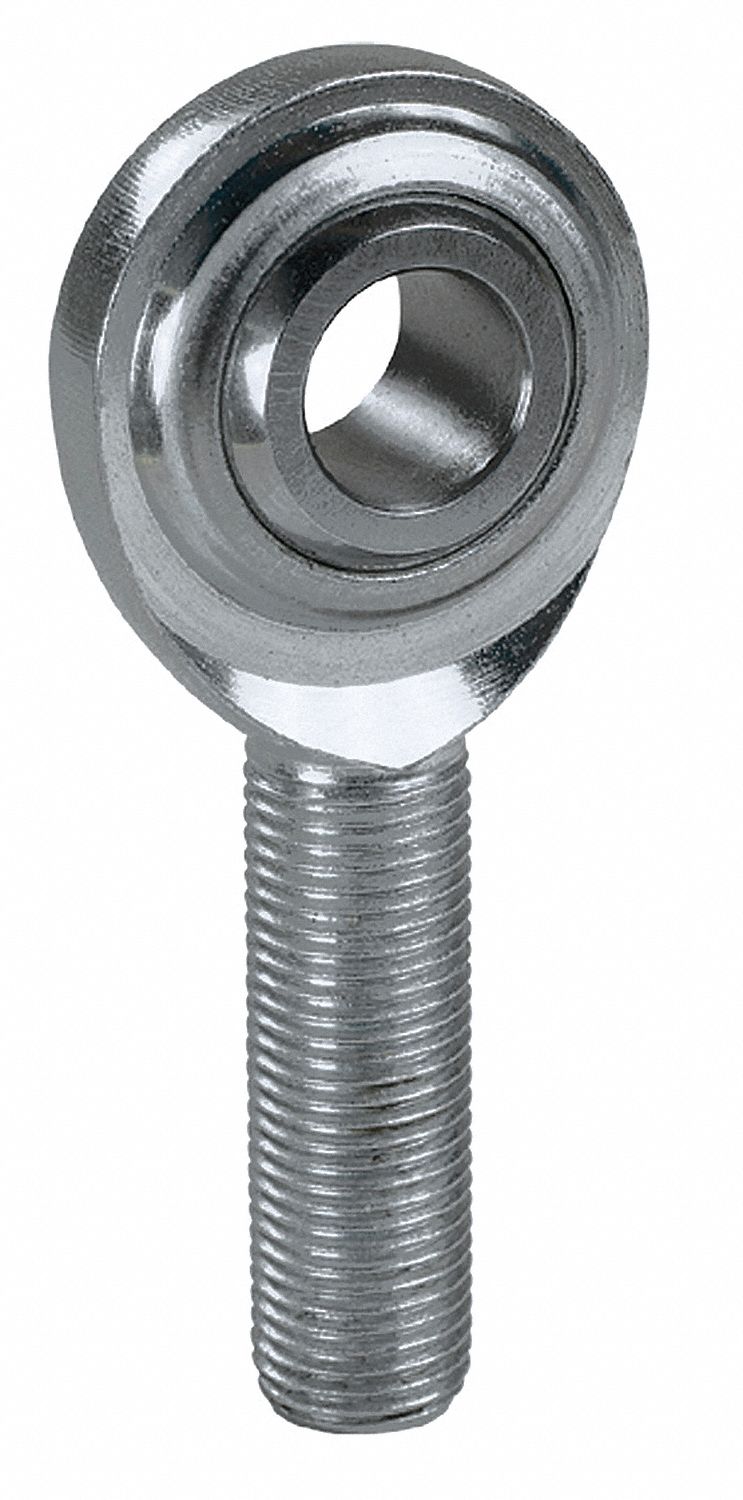

Spherical Rod End System of Measurement Inch Bore Diameter 5/8 in Head Outside Diameter 1 1/2 in Head Width 0.
484 in Shank Thread Length 1 5/8 in Shank Thread Size 5/8 In.
-18 Housing Material Stainless Steel Shank Thread Direction Right Hand Application Light Duty Ball Diameter 1.
125 in Ball Material Stainless Steel Ball Material Grade 440C Bore Diameter Tolerance +0.
0015/-0.
0005 in Housing Material Finish Chrome Plated Inner Ring Width 0.
75 in Maximum Ball Swivel 26 Degrees - Alternate Part Numbers- 20G052- GMR10T- 20G052
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
GMR10T
Manufacturer Part Number:
QA1
