Description

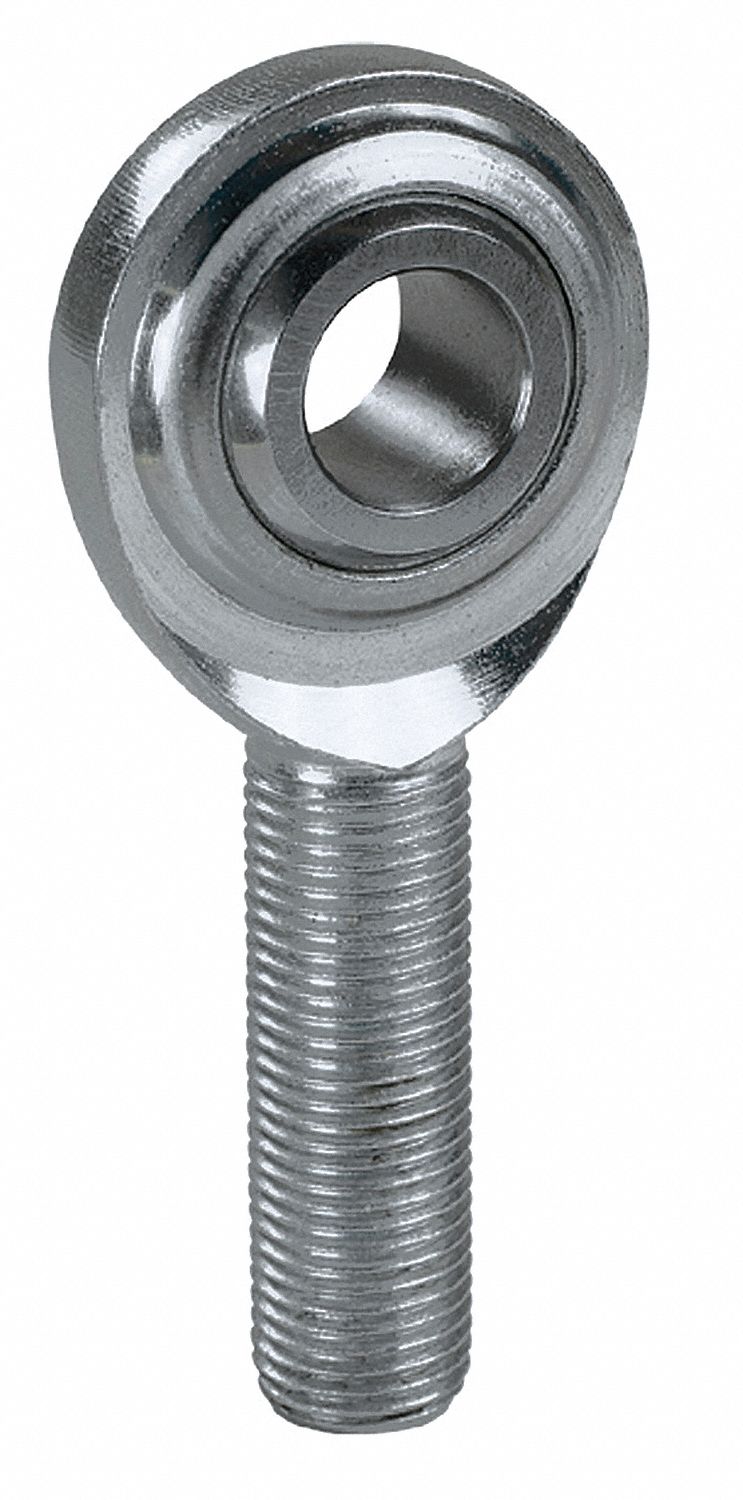

Spherical Rod End System of Measurement Inch Bore Diameter 3/8 in Head Outside Diameter 1 in Head Width 0.
359 in Shank Thread Length 1 1/4 in Shank Thread Size 3/8 In.
-24 Housing Material Stainless Steel Shank Thread Direction Left Hand Application Light Duty Ball Diameter 0.
719 in Ball Material Stainless Steel Ball Material Grade 440C Bore Diameter Tolerance +0.
0015/-0.
0005 in Housing Material Finish Chrome Plated Inner Ring Width 0.
5 in Maximum Ball Swivel 22 Degrees - Alternate Part Numbers- 20G047- GML6T- 20G047
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
GML6T
Manufacturer Part Number:
QA1
