Description

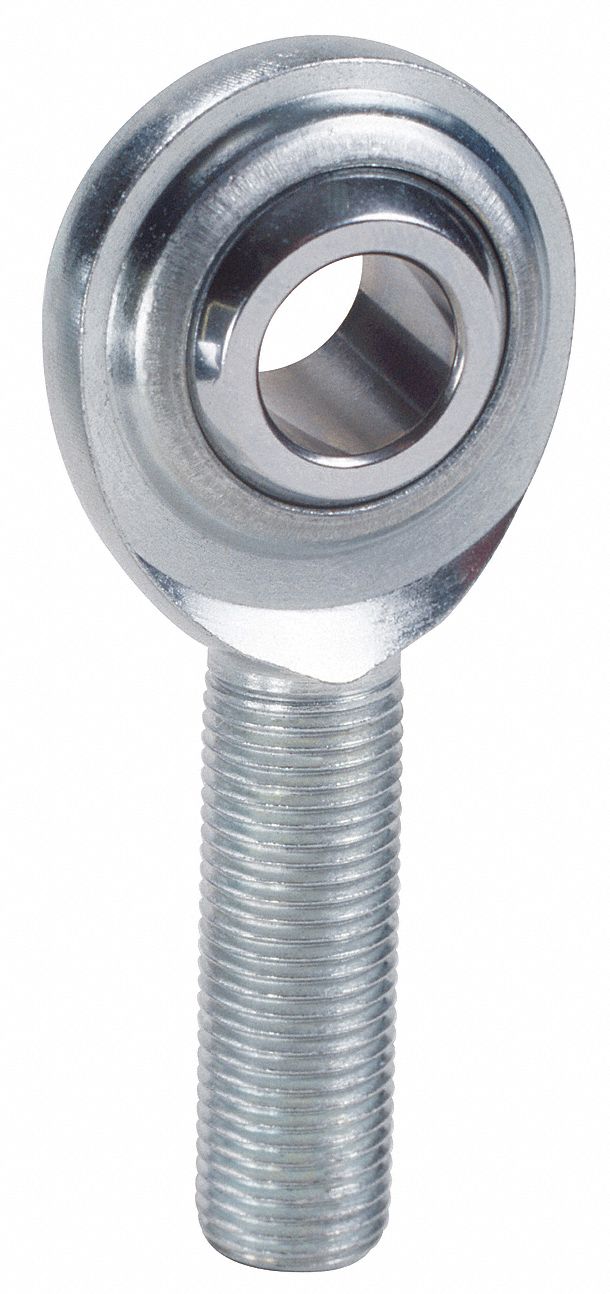

Spherical Rod End System of Measurement Inch Bore Diameter 3/4 in Head Outside Diameter 1 3/4 in Head Width 0.
593 in Shank Thread Length 1 3/4 in Shank Thread Size 3/4 In.
-16 Housing Material Carbon Steel Shank Thread Direction Left Hand Application Light Duty Ball Diameter 1.
312 in Ball Material Alloy Steel Ball Material Grade 52100 Bore Diameter Tolerance +0.
0025/-0.
0005 in Housing Material Finish Chrome Plated Inner Ring Width 0.
875 in Maximum Ball Swivel 24 Degrees - Alternate Part Numbers- 20F990- CML12- 20F990
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
CML12
Manufacturer Part Number:
QA1
