Description

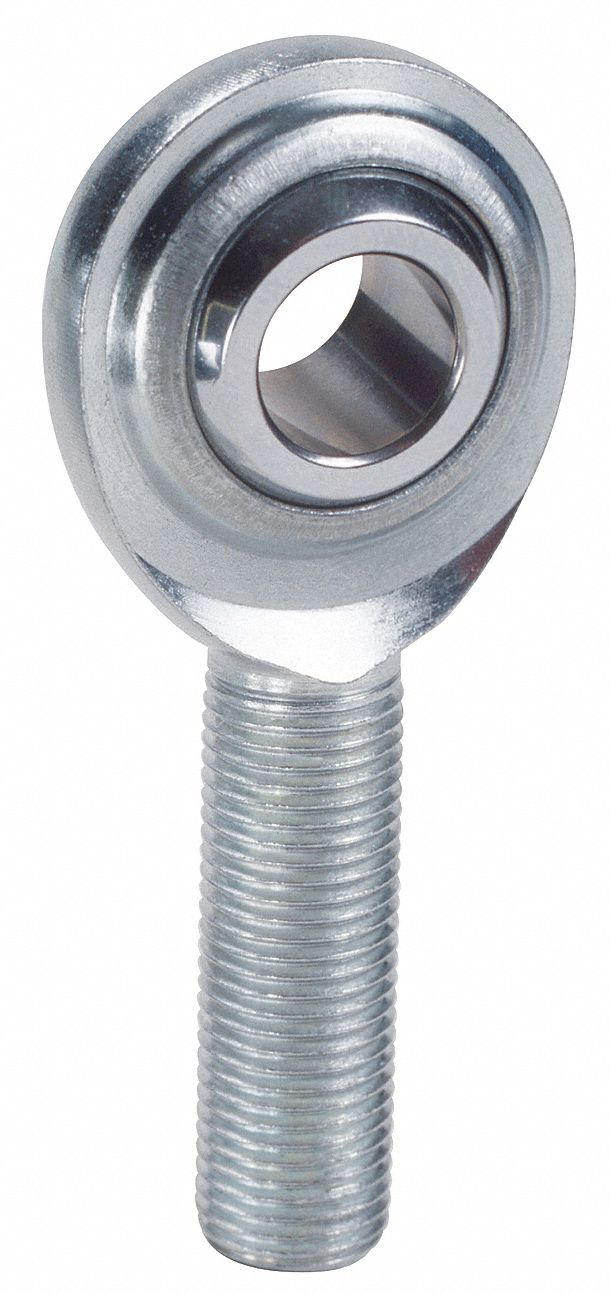

Spherical Rod End System of Measurement Metric Bore Diameter 16 mm Head Outside Diameter 38 mm Head Width 12.
75 mm Shank Thread Length 40 mm Shank Thread Size M16-2.
0 Housing Material Carbon Steel Shank Thread Direction Left Hand Application Light Duty Ball Diameter 28.
58 mm Ball Material Alloy Steel Ball Material Grade 52100 Bore Diameter Tolerance +0.
065/-0.
012 in Housing Material Finish Chrome Plated Inner Ring Width 21 mm Maximum Ball Swivel 33 Degrees Overall Length 85 mm- Alternate Part Numbers- 39N450- MCML16- 39N450
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
MCML16
Manufacturer Part Number:
QA1
