Description

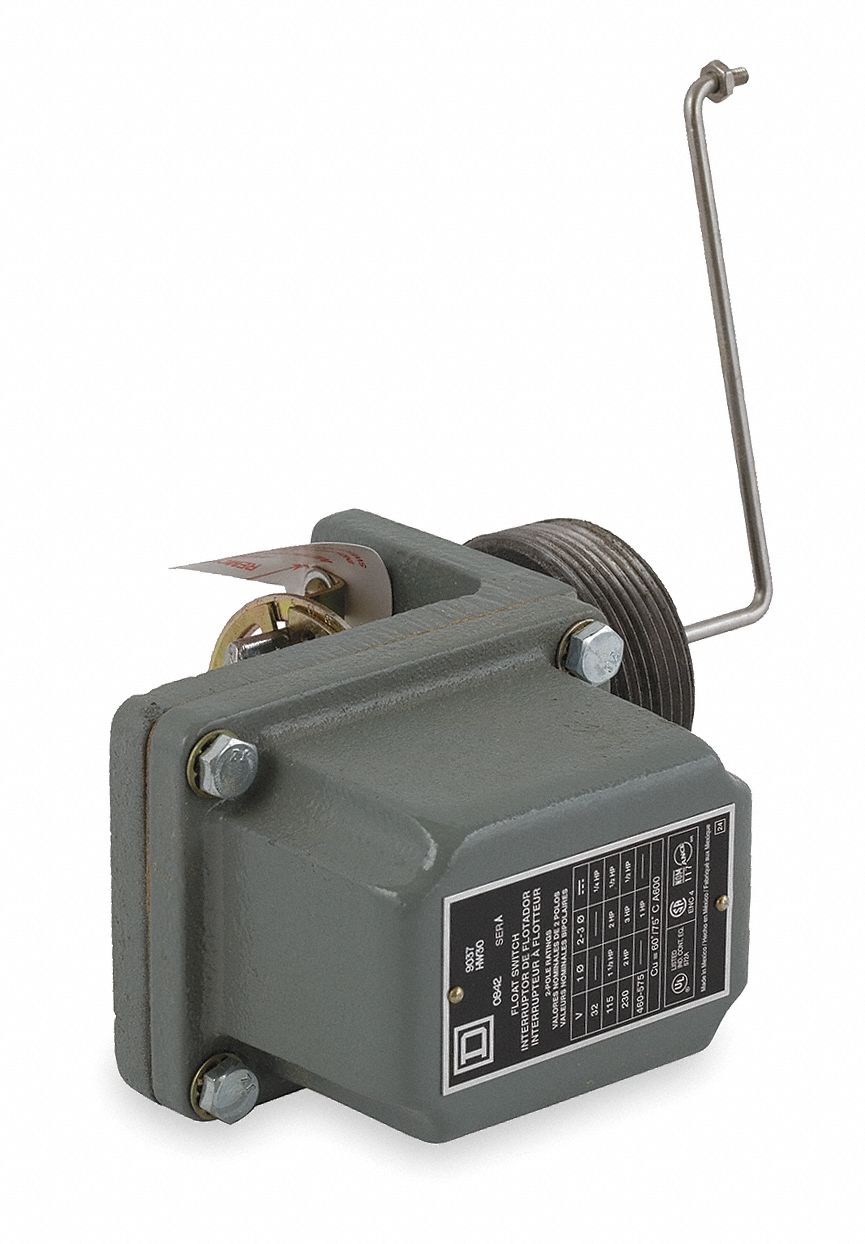

Tank Liquid Level Switch Switch Function Close On Rise Side Mounting Float Position Right Float Rod Angle 90 Degrees Float Travel 4 1/2 in Tank Connection Size 2-1/2 in MNPT NEMA Rating 4 Contact Form DPST Operating Temp Range -22 Degrees to 220 Degrees F Max Pressure 50 psi Overall Length 16.
94 in Float Material Stainless Steel Float Length 7.
13 in Float Dia 2.
58 in Stem Material Stainless Steel Stem Length 4.
37 in Height 6.
22 in Width 3.
63 in Max Voltage 475 V
Features
Extra Information
Processing Time:
2-3 days
