Description

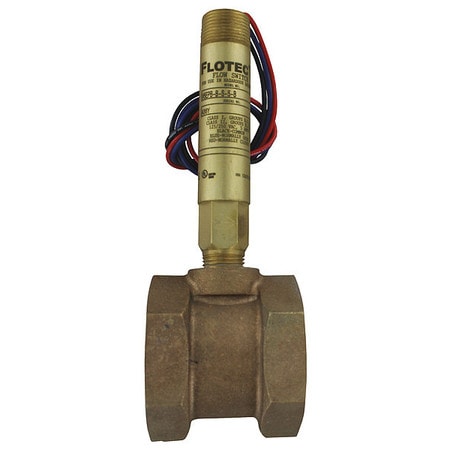

DWYER INSTRUMENTS V6EPB-B-S-5-B - LIQUID FLOW SWITCH SPDT 125/250VAC - LIQUID FLOW SWITCH PISTON 1 PHASE 50/60 HZ FLOW RATE 6 GPM CONNECTION SIZE (IN.
) 1-1/2 FNPT MIN AMBIENT TEMP (F) -4 DEGREES MAX AMBIENT TEMP (F) 167 DEGREES F MIN FLUID TEMP (F) -4 DEGREES F MAX FLUID TEMP (F) 220 DEGREES F MAX PRESSURE (PSI) 250 PSI SWITCH TYPE SPDT MAX DUCT SIZE (IN.
) 1 1/2 IN CONTACT RATING 5A AT 125/250V AC BODY MATERIAL BRASS MATERIAL OF CONSTRUCTION BRASS WETTED MATERIALS BRASS CERAMIC 301 STAINLESS STEEL 302 STAINLESS STEEL - EQUAL TO G0503642
Features
Extra Information
Mandatory & Preferred Sources:
- Made in the USA
Specs
Manufacturer Name:
DWYER INSTRUMENTS
Manufacturer Part Number:
V6EPB-B-S-5-B
