Description

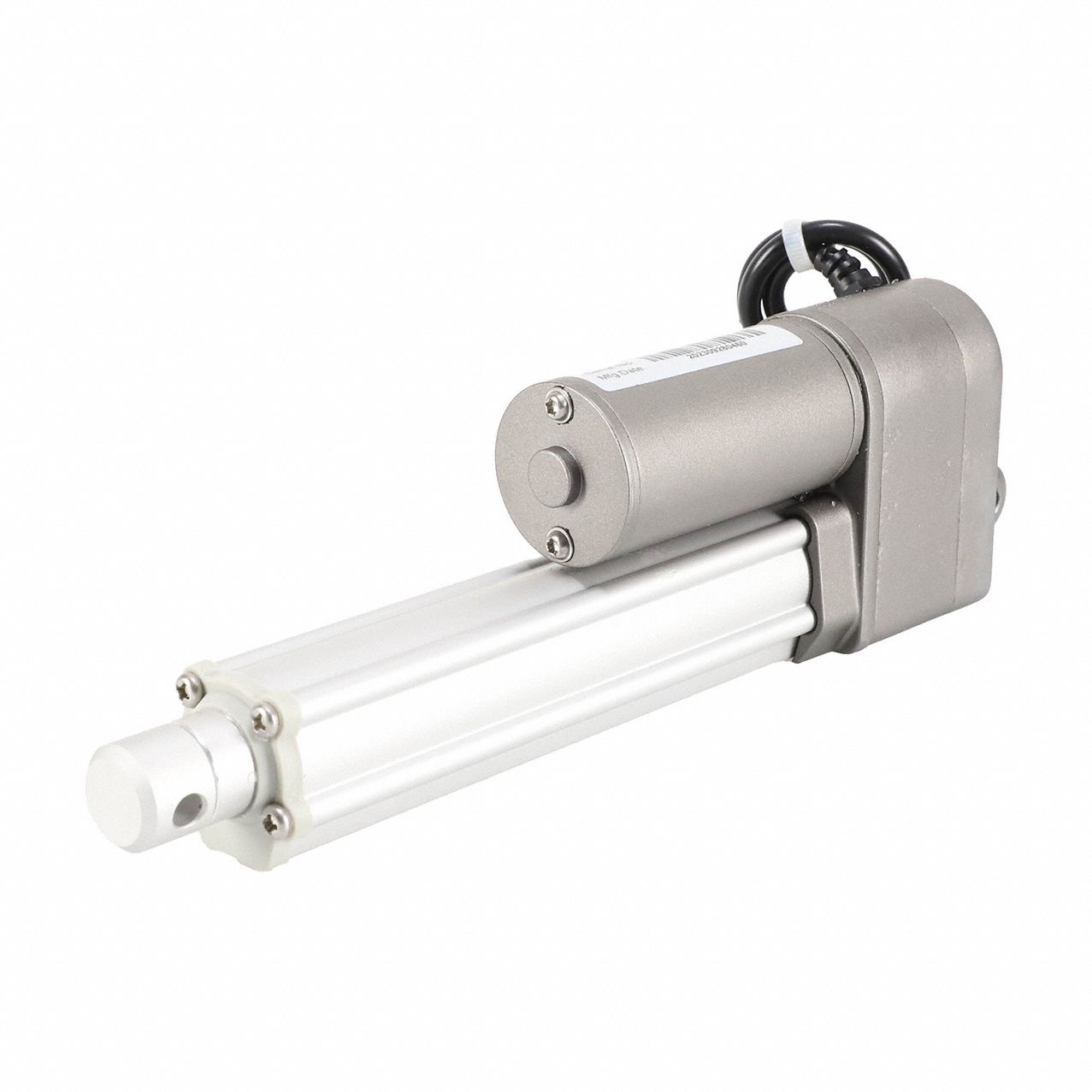

Linear Actuator Motor Type DC Voltage 12V DC Nut Material Plastic Load Capacity 27 lbf Stroke Length 4 in Speed at Full Load 0.
9 in/sec Duty Cycle 20 Percent Full Load Current 2.
5 A Retracted Length 8 in Gear Material Metal Drive System Type Gear Enclosure IP Rating IP66 Includes Potentiometer Potentiometer Included Housing Finish Polished Housing Material Zinc Die Cast Limit Switch Setting Fixed Operating Temperature - Maximum 150 Degrees F- Alternate Part Numbers- 804Y08- LT251100P
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
LT25-1-100P
Manufacturer Part Number:
DUFF-NORTON
