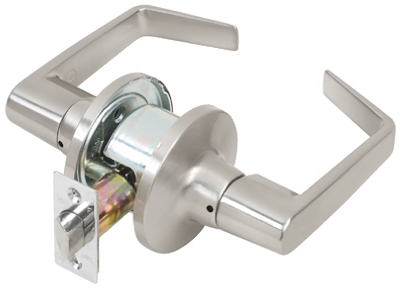

TELL MANUFACTURING CL100197 - LIGHT-DUTY COMMERCIAL SATIN-FINISH PASSAGE LEVER - LIGHT DUTY, COMMERCIAL, TUBULAR GRADE 2 PASSAGE LEVER, COMPLIES WITH ANSI A 156.
2, SERIES 4000, GRADE 2, 400,000 CYCLES, UL LISTED FOR 3 HOUR FIRE DOOR & ANSI A117.
1 AMERICAN DISABILITIES ACT, TUBULAR STEEL CHASSIS, COATED WITH ZINC DICHROMATE CORROSION RESISTANCE, , LEVER IS NON-HANDED & SOLID CAST, LATCH 1" X 2-1/4" SQUARE CORNER FACEPLATE, 1" HOUSING DIAMETER STAINLESS STEEL, 1/2" THROW, ADJUSTABLE BACKSET 2-3/4" OR 2-3/8", US26D SATIN CHROME FINISH, 1-1/8" X 2-3/4" X 3/32" T STRIKE, USE OF DOORS 1-3/8" TO 1-3/4" THICK, USES 2-1/8" DIAMETER HOLE FOR LEVER & 1" DIAMETER HOLE FOR LATCH BOLT, - EQUAL TO 4791000
Features
Specs
Manufacturer Name:
TELL MANUFACTURING
Manufacturer Part Number:
CL100197
