Description

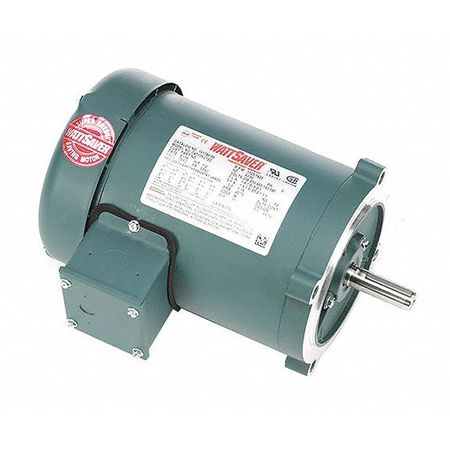

LEESON 101780.00 - LEESON 101780.00, 0.5 HP, 1725 RPM, 208-230/460V, S56C, TEFC, C-FACE FOOTLESS - GENERAL PURPOSE, 3-PHASE MOTOR: 1/2HP, 1725/1425 RPM, TOTALLY-ENCLOSED FAN-COOLED (TEFC) ENCLOSURE, 56 FRAME, ROUND MOUNT, 208-230/460V, 3PH, 60/50HZ, NAME PLATE AMPS 1.8/.9&2.1/1.05, CONTINUOUS DUTY, 1.15 SERVICE FACTOR, AUTOMATIC THERMAL PROTECTION, EFFICIENCY: 77, EFFICIENCY TYPE: NEMA PREMIUM, AMBIENT 40 C, REVERSE ROTATION, SHAFT LENGTH 1-7/8, SHAFT DIAMETER 5/8.
TOTALLY ENCLOSED FAN COOLED (TEFC) ENCLOSURE HAS NO VENT OPENINGS, AND IS TIGHTLY ENCLOSED TO PREVENT THE FREE EXCHANGE OF AIR, BUT IS NOT AIRTIGHT. AN EXTERNAL FAN IS AN INTEGRAL PART OF THE MOTOR AND PROVIDES COOLING BY BLOW - EQUAL TO B221800
Features
Specs
Manufacturer Name:
LEESON
Manufacturer Part Number:
101780.00
