Description

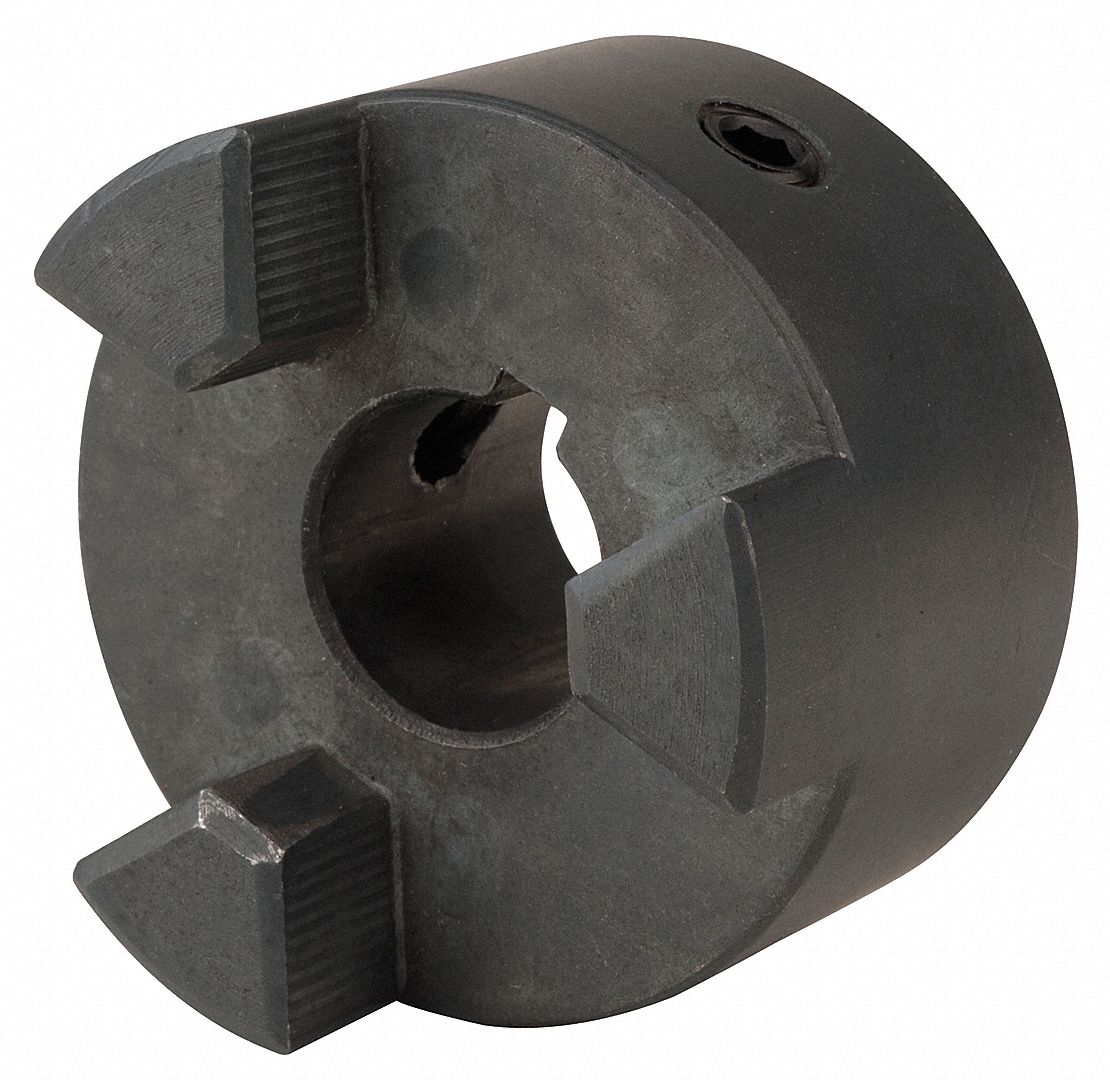

Shaft Coupler Body Coupling Size L075 Outside Diameter 1 3/4 in Coupling Overall Length 2 1/8 in System of Measurement Inch Hub Material Sintered Iron Maximum Speed 11 000 RPM Horsepower @ 100 RPM 0.
14 hp (Buna-N Spider) 0.
36 hp (Hytrel Spider) Keyway Depth 3/32 in Keyway Width 3/16 in Bore Diameter 5/8 in Shaft Locking Type Set Screw Bore Type Round Bore with Keyway Jaw Profile Straight Screw Thread Size 1/4-20 UNC Hub Diameter 1 3/4 in Hub Material Grade 1045- Alternate Part Numbers- 29HY81- 29HY81- 29HY81
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
29HY81
Manufacturer Part Number:
DAYTON
