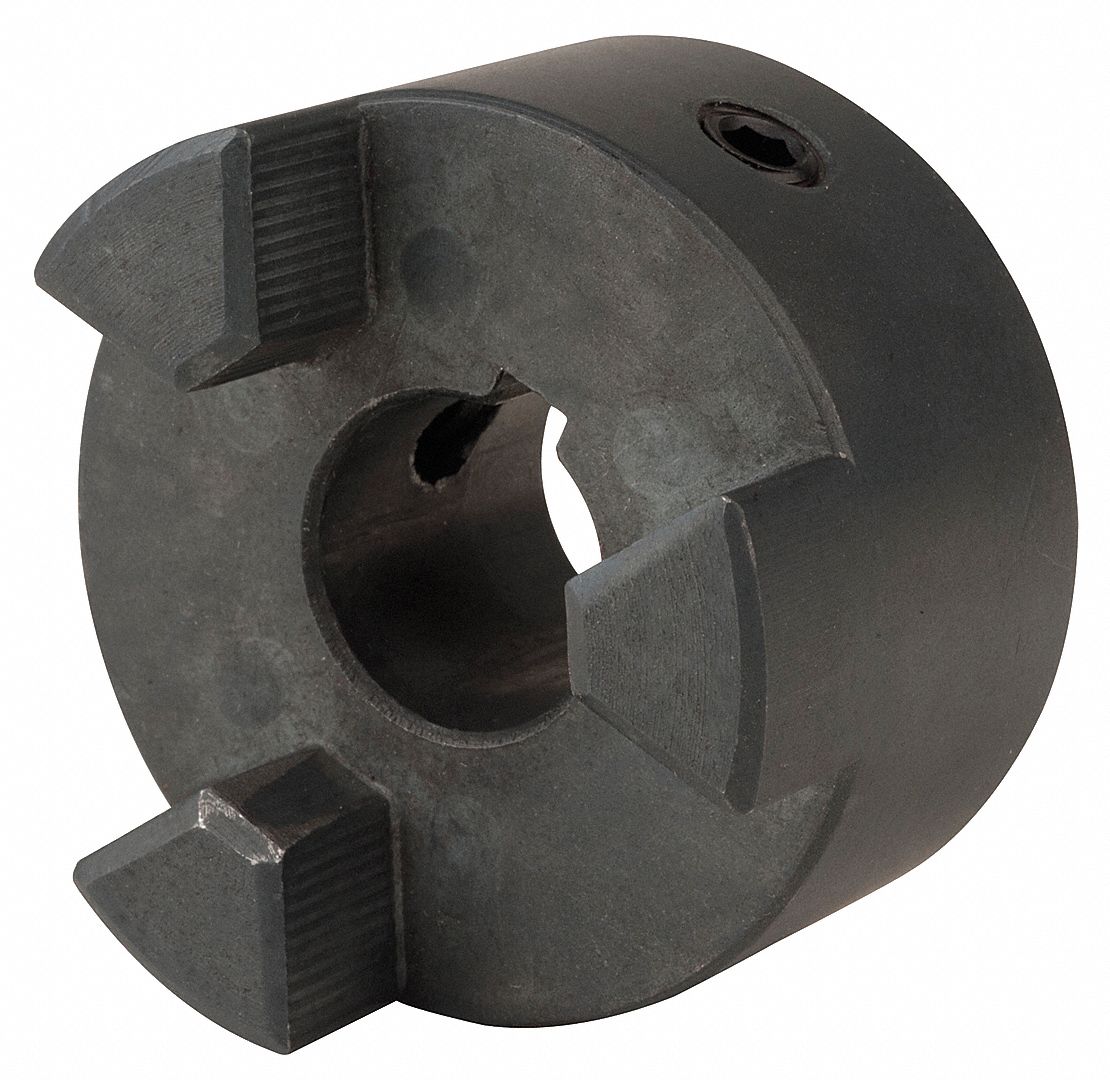

Shaft Coupler Body Coupling Size L150 Outside Diameter 3 3/4 in Coupling Overall Length 4 1/2 in System of Measurement Inch Hub Material Sintered Iron Maximum Speed 5 000 RPM Horsepower @ 100 RPM 2 hp (Buna-N Spider) 5.
88 hp (Hytrel Spider) Keyway Depth 1/4 in Keyway Width 1/2 in Bore Diameter 1 7/8 in Shaft Locking Type Set Screw Bore Type Round Bore with Keyway Jaw Profile Straight Screw Thread Size 3/8-16 UNC Hub Diameter 3 3/4 in Hub Material Grade 1045- Alternate Part Numbers- 29HY56- 29HY56- 29HY56
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
29HY56
Manufacturer Part Number:
DAYTON
