Description

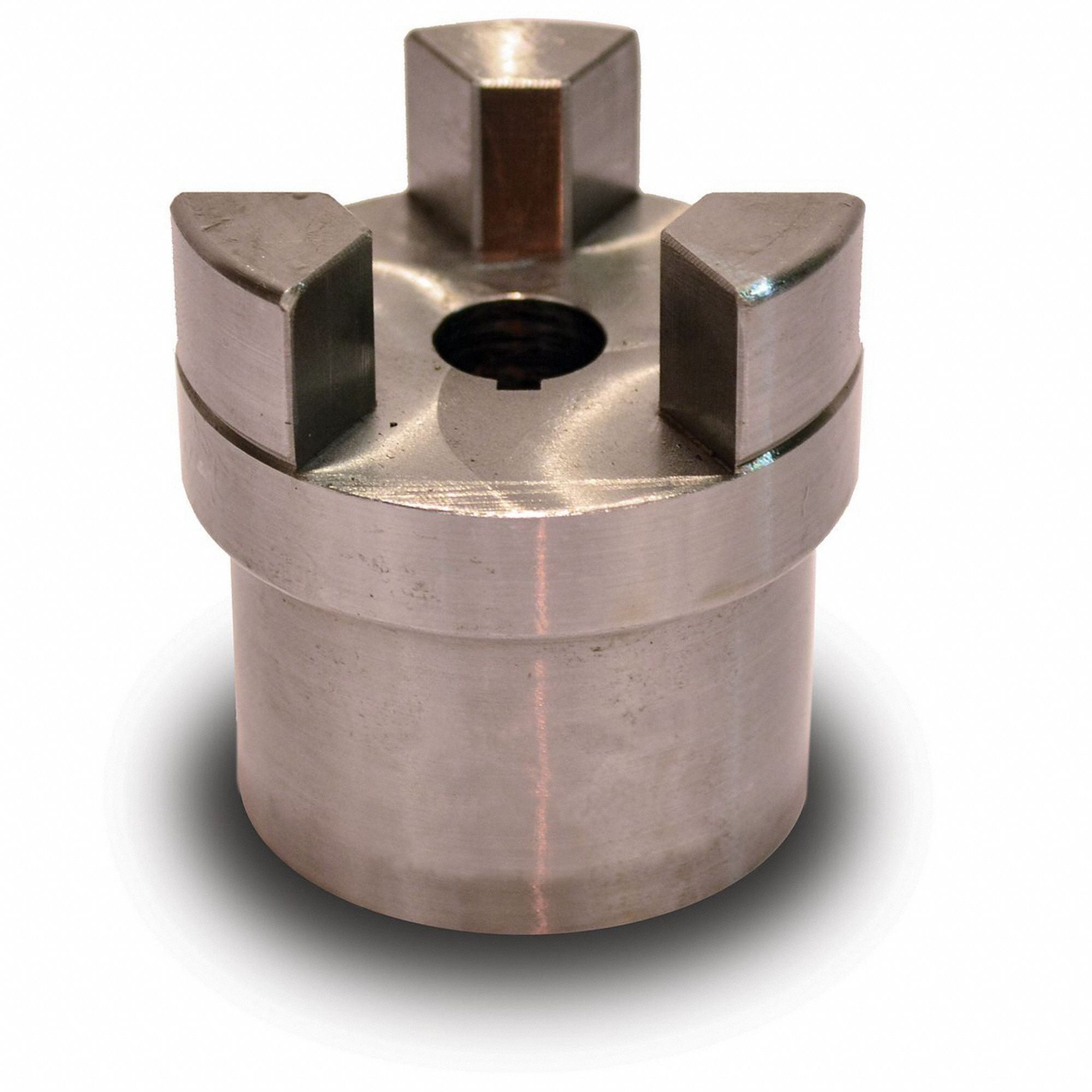

Shaft Coupler Body Coupling Size FC30 Outside Diameter 3 in Coupling Overall Length 5 15/32 in System of Measurement Inch Hub Material Carbon Steel Maximum Speed 3 450 RPM Keyway Depth 3/16 in Keyway Width 3/8 in Bore Diameter 1 1/2 in Shaft Locking Type Set Screw Bore Type Round Bore with Keyway Jaw Profile Straight Bore Tolerance +0.
001/-0.
000 in Hub Diameter 2 3/4 in- Alternate Part Numbers- 2L053- FC30112- 2L053
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
FC30 1 1/2
Manufacturer Part Number:
BOSTON GEAR
