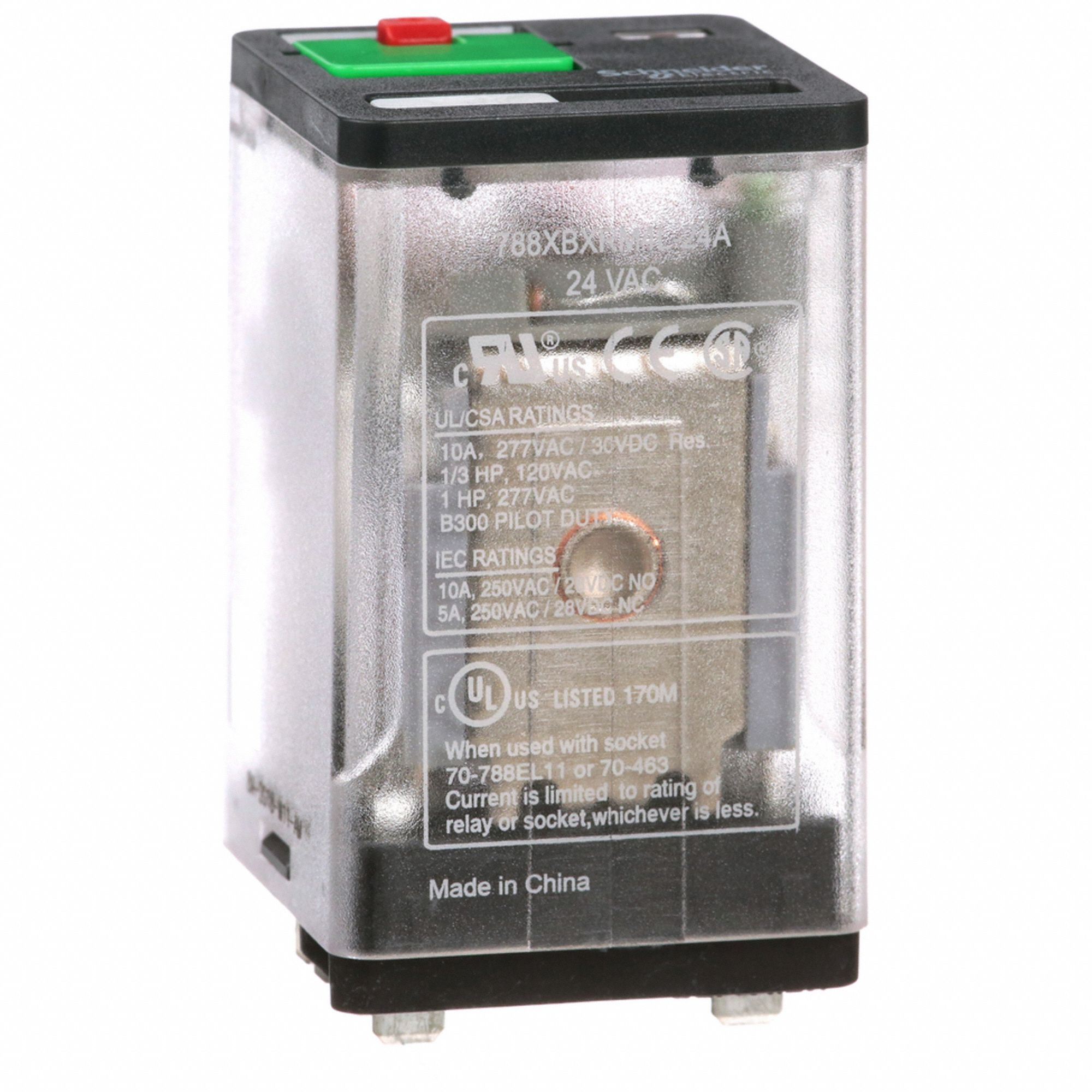

J2415 General Purpose Relay Base Shape Square Coil Voltage 24V AC Contact Form DPDT Current Rating 10 A Electrical Connection Blade Terminal Flat Pin Width 0.
189 in Number of Pins 8 Pin Shape Flat Sealing Enclosed Status Indicator LED Indicator Contact Rating (AC) 10 A @ 277V 5 A @ 250V-1 (NC) Contact Rating (DC) 10 A @ 28V Horsepower @ 120V AC 1/3 hp Horsepower @ 240V AC 1/2 hp Mounting Style Plug-In Push-To-Test Method Lockable Body Depth 2.
09 in Body Height 1.
4 in- Alternate Part Numbers- 35KR63- 788XBXRM4L24A- 35KR63
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
788XBXRM4L-24A
Manufacturer Part Number:
SCHNEIDER
