Description

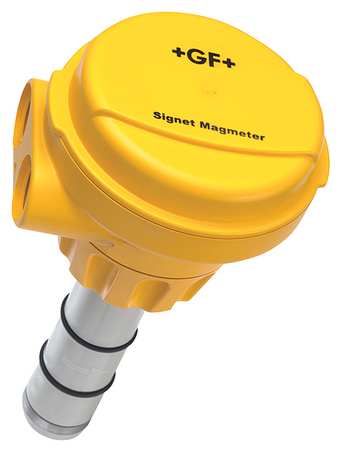

SIGNET 3-2551-P0-11 - INSERTION MAGMETER - MAGMETER FLOW SENSOR, FLOW INDICATOR, FOR PIPE SIZE 1/2 IN TO 4 IN, CONNECTION TYPE INSERTION, FLUID TEMP.
RANGE 32 DEGREES TO 185 DEGREES F, WETTED MATERIALS EPR, FPM, NEMA 4X/IP65, PBT, POLYAMIDE, PVDF, MAX.
PRESSURE 150 PSI @ 77 DEGREES F, FLOW RANGE 0.
14 TO 1309 GPM, MAX.
VISCOSITY 500 SUS, FLOW MATERIAL -, GPM MAX.
DEPENDS ON PIPE SIZE, MAX.
VOLTAGE 24V DC, LENGTH 2 1/8 IN, WIDTH 1/2 IN, HEIGHT 1/2 IN, HOUSING MATERIAL PP, FITTING GF INSERTION FITTING, CHAMBER MATERIAL PP - EQUAL TO 5MXR1
Features
Extra Information
Mandatory & Preferred Sources:
- Made in the USA
Specs
Manufacturer Name:
SIGNET
Manufacturer Part Number:
3-2551-P0-11
