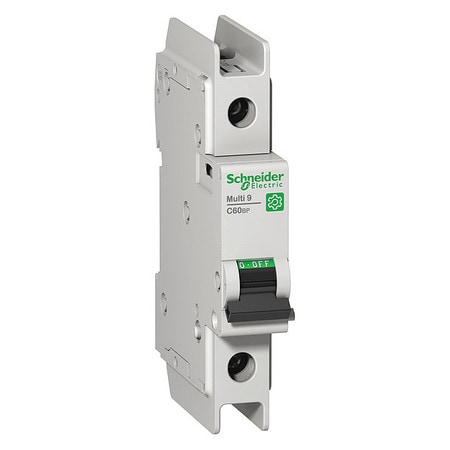

SCHNEIDER ELECTRIC M9F42108 - IEC MINIATURE CIRCUIT BREAKER, MULTI9 SERIES, 8A, 1 POLE, 240/415V AC, 14KA AT 120/240V AC, C CURVE - IEC MINIATURE CIRCUIT BREAKER, AMPS 8 A, NUMBER OF POLES 1, CURVE TYPE C, AC VOLTAGE RATING 240/415V AC, DC VOLTAGE RATING 60V DC, MAX.
AIR RATING 14KA AT 120/240V AC, PHASE 1, MEETS UL TYPE UL 489, TERMINAL CONNECTION SCREW CLAMP, SERIES C60BP, TRIP TYPE THERMAL MAGNETIC, CIRCUIT BREAKER MOUNTING STYLE DIN RAIL, APPLICATION BRANCH CIRCUIT PROTECTION, MIN.
WIRE SIZE 18 AWG, MAX.
WIRE SIZE 8 AWG, LENGTH 4.
06 IN, WIDTH 0.
71 IN, DEPTH 2.
83 IN, FRAME SIZE 63A/C60BP, CIRCUIT BREAKER ACTUATOR TOGGLE - EQUAL TO G6576208
Features
Specs
Manufacturer Name:
SCHNEIDER ELECTRIC
Manufacturer Part Number:
M9F42108
