Description

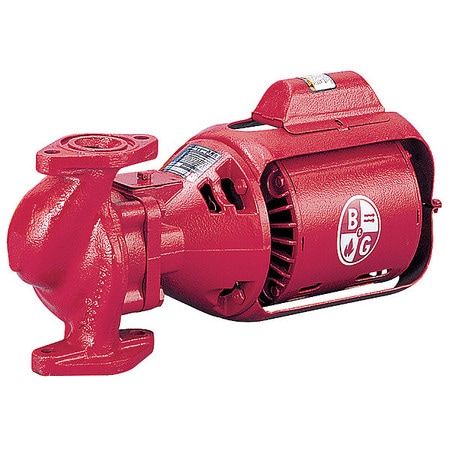

BELL & GOSSETT HV NFI - HOT WATER CIRCULATOR PUMP HV SERIES - HOT WATER CIRCULATOR PUMP PUMP TYPE 3-PIECE OIL-LUBRICATED BOOSTER SERIES HV HP 1/6 VOLTAGE 115 1 PHASE INLET/OUTLET SIZE 3/4 IN TO 1-1/2 IN.
CONNECTION STYLE FLANGED FACE TO FACE DIMENSION 8-1/2 IN.
MAX GPM @ HEAD 39 GPM @ 1 FT.
BEST EFFICIENCY GPM @ HEAD 28 GPM @ 8 FT.
MIN GPM @ HEAD 15 GPM @ 11 FT.
SHUT-OFF 12 FT.
HOUSING MATERIAL CAST IRON DRIVE TYPE DIRECT LENGTH 15-3/8 IN.
WIDTH 6-1/2 IN.
LOOP CONFIGURATION CLOSED FLANGE/UNION INCLUDED NO INCLUDES - - EQUAL TO G1838986
Features
Extra Information
Mandatory & Preferred Sources:
- Made in the USA
Specs
Manufacturer Name:
BELL & GOSSETT
Manufacturer Part Number:
HV NFI
