Description

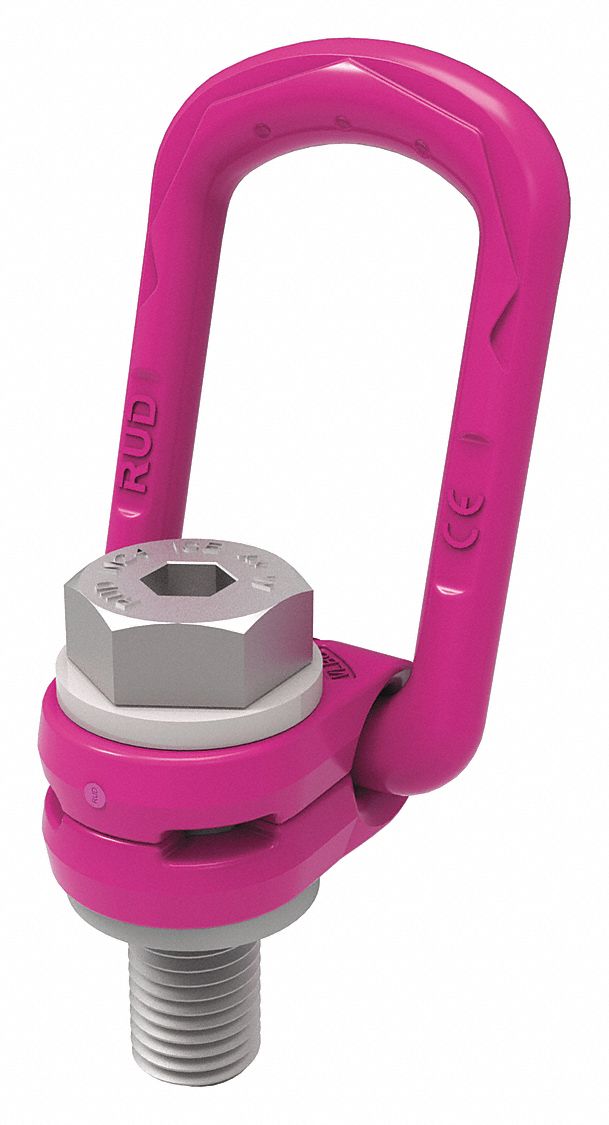

Hoist Ring Movement Type Pivot Swivel Material Alloy Steel Mount Type Screw-On Working Load Limit 9 920 lb Thread Size 1 7/16 in Operation Lifting Pivot Angle 180 Degrees Swivel Angle 360 Degrees Usable Thread Length 1 1/2 in Bail Inside Length 2 5/8 in Bail Inside Width 2 1/8 in Bail Thickness 23/32 in Overall Length 7 1/8 in Overall Width 3 1/4 in Hardware Included Not Applicable Minimum Installation Torque 560.
5 ft-lb Finish Powder Coated
Features
Extra Information
Processing Time:
2-3 days
