Description

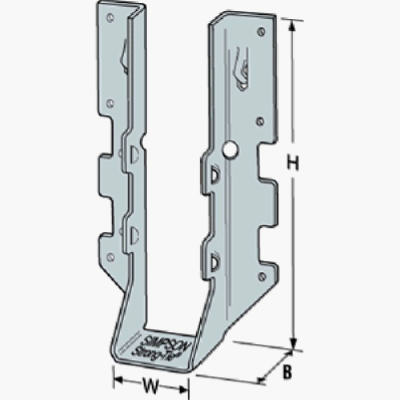

*** MUST BE ORDERED IN MULTIPLES OF 100 *** SIMPSON STRONG-TIE LUS24Z - HANGER DBL SHR 18GA 2X4IN - JOIST HANGERS DOUBLE SHEAR FACE MOUNT - GALVANIZED ZMAX COATING 18 GAUGE SIZE IN=2 X 4 DISTRIBUTES THE LOAD THROUGH TWO POINTS ON EACH JOIST NAIL FOR GREATER STRENGTH; IT ALSO ALLOWS THE USE OF FEWER NAILS, FASTER INSTALLATION AND THE USE OF STANDARD NAILS FOR ALL CONNECTIONS.
DO NOT BEND OR REMOVE TABS.
USE HOT-DIP GALVANIZED (HDG) NAILS WITH ZMAX AND HDG CONNECTOR PRODUCTS; 16D SINKERS MAY BE USED WHERE 10D COMMONS ARE SPECIFIED WITH NO REDUCTION IN LOAD; WITH 3X CARRYING MEMBERS, USE 16DX2-1/2" NAILS INTO THE HEADER AND 16D COMMONS INTO THE JOIST WITH NO LOAD REDUCTION; WITH 2X CARRYING MEM - EQUAL TO 3548955
Features
Specs
Manufacturer Name:
SIMPSON STRONG-TIE
Manufacturer Part Number:
LUS24Z
