Description

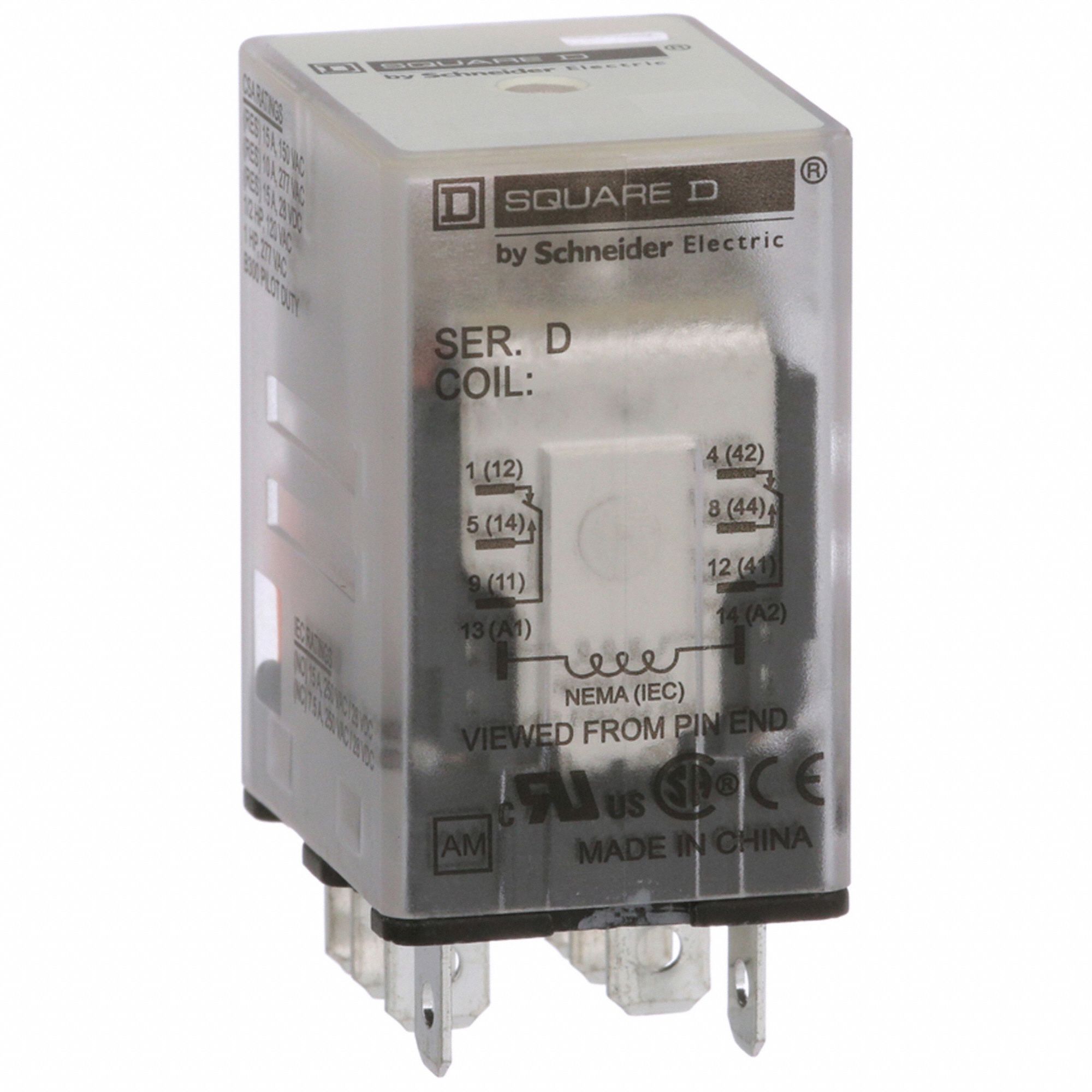

H7991 General Purpose Relay Base Shape Square Coil Voltage 120V AC Contact Form DPDT Current Rating 15 A Electrical Connection Quick-Connect Flat Pin Width 0.
18 in Number of Pins 8 Pin Shape Flat Sealing Enclosed Status Indicator Mechanical Flag Contact Rating (AC) 15 A @ 120V 15 A @ 277V Contact Rating (DC) 10 A @ 28V Horsepower @ 120V AC 1/2 hp Horsepower @ 240V AC 1/10 hp Mounting Style Socket Push-To-Test Method No Button Body Depth 1.
65 in Body Height 1.
07 in- Alternate Part Numbers- 2DW42- 8501RS42V20- 2DW42
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
8501RS42V20
Manufacturer Part Number:
SCHNEIDER
