Description

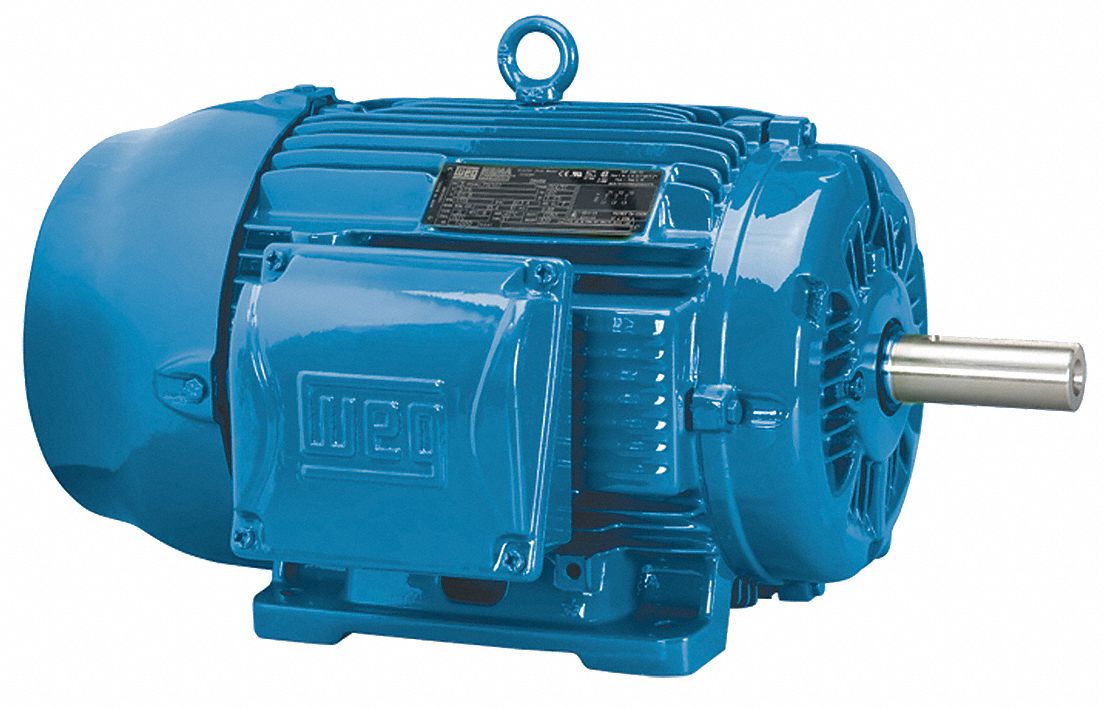

General Purpose Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 1 755 No of Speeds 1 Voltage 230/460V AC Full Load Amps 12.
9/6.
45 A 184T Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Hz Motor Service Factor 1.
25 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base- Alternate Part Numbers- 6AJC2- 00518ET3E184TW22- 6AJC2
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
ZZ
Manufacturer Name:
00518ET3E184T-W22
Manufacturer Part Number:
WEG
