Description

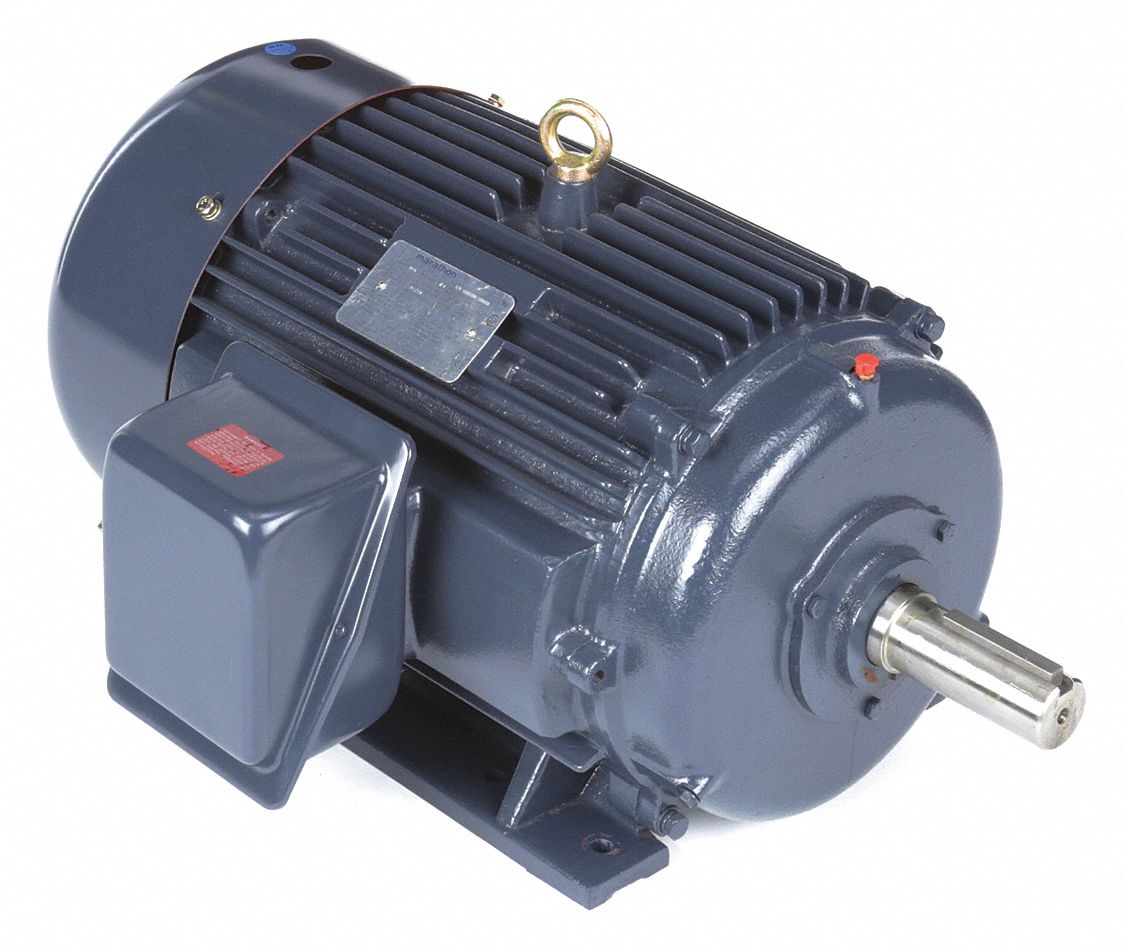

General Purpose Motor Three Phase Motor Design 3-Phase 30 HP Nameplate RPM 1 770 No of Speeds 1 Voltage 230/460V AC Full Load Amps 71.
0/35.
5 A 286T Frame Usable @ 208V No Usable @ 200V No Hz 60 Hz Motor Service Factor 1.
15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base
Features
Extra Information
Processing Time:
2-3 days
