Description

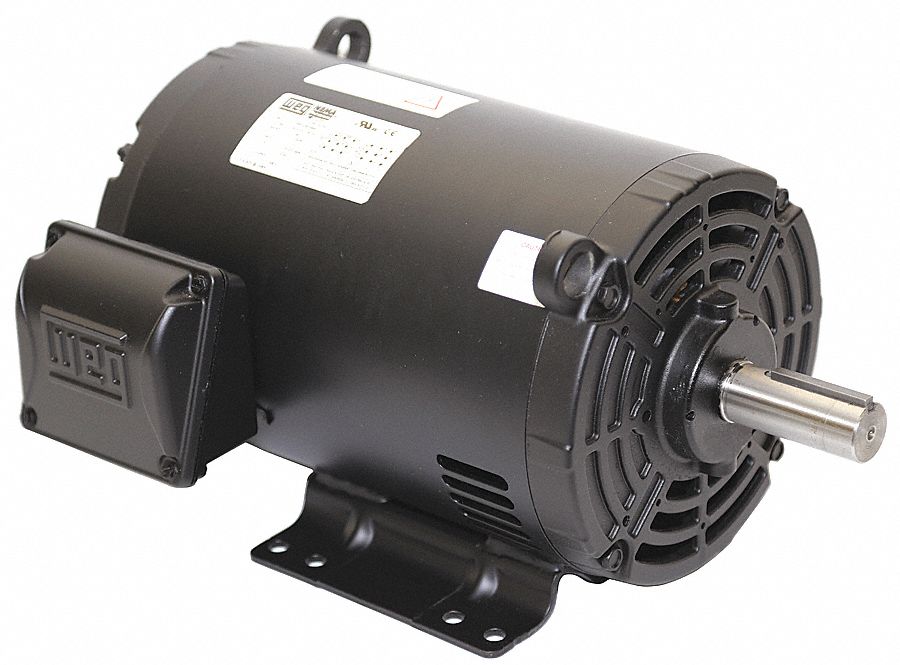

General Purpose Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 3 480 No of Speeds 1 Voltage 230/460V AC Full Load Amps 7.
18/3.
59 A 143/5T Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Hz Motor Service Factor 1.
15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design None Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal- Alternate Part Numbers- 33HP06- 00336OT3E145TS- 33HP06
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
ZZ
Manufacturer Name:
00336OT3E145T-S
Manufacturer Part Number:
WEG
