Description

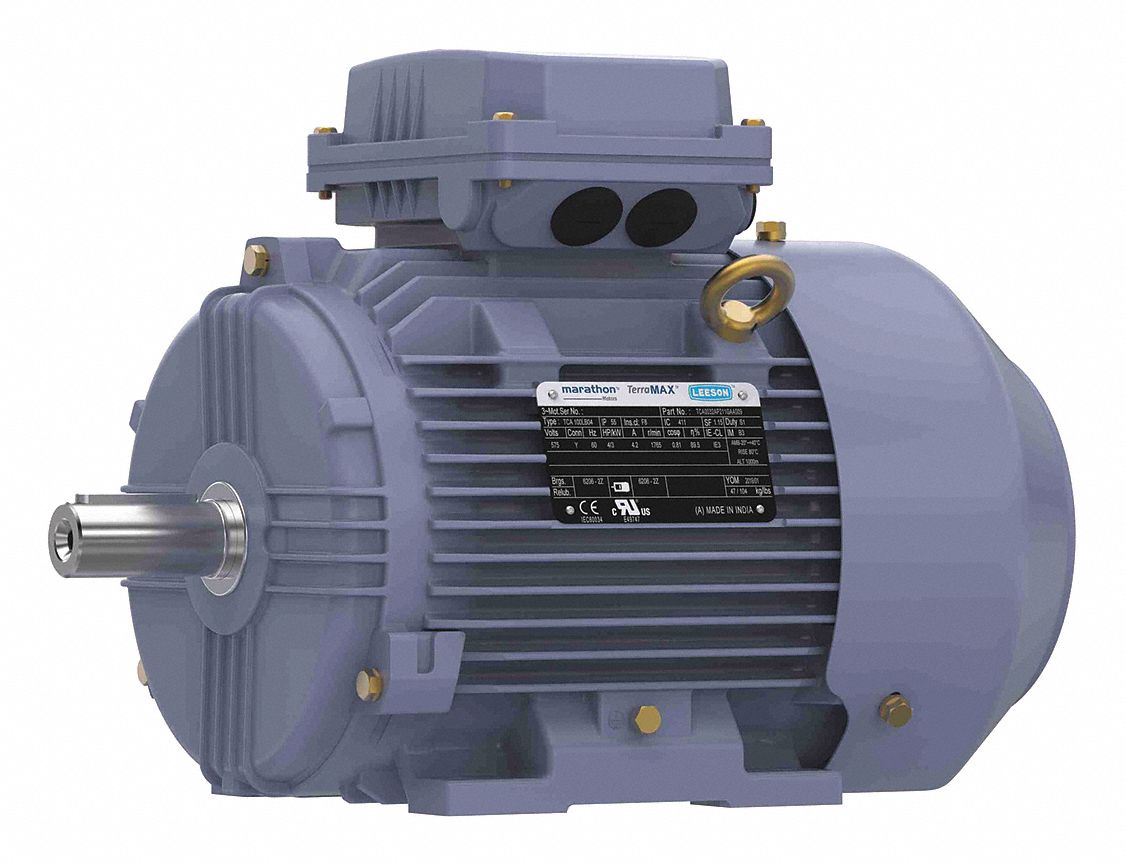

General Purpose Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 1 770 No of Speeds 1 Voltage 575V AC Full Load Amps 3.
1 A 100L Frame Usable @ 208V No Usable @ 200V No Hz 60 Hz Motor Service Factor 1.
15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design N Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal- Alternate Part Numbers- 55AY77- TCA2P22AP211GAA009- 55AY77
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
IN
Manufacturer Name:
TCA2P22AP211GAA009
Manufacturer Part Number:
MARATHON MOTORS
