Description

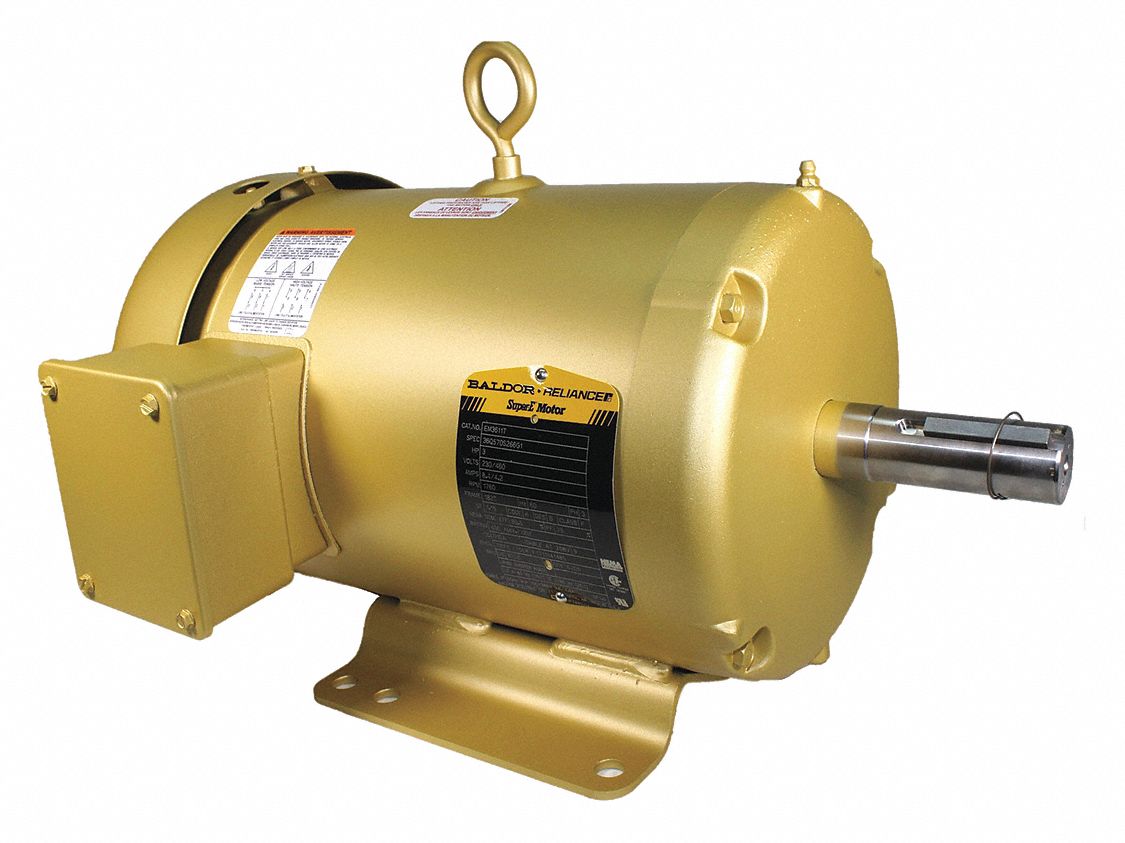

General Purpose Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 1 760 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 8.
4/4.
2 A 182T Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Hz Motor Service Factor 1.
15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base
