Description

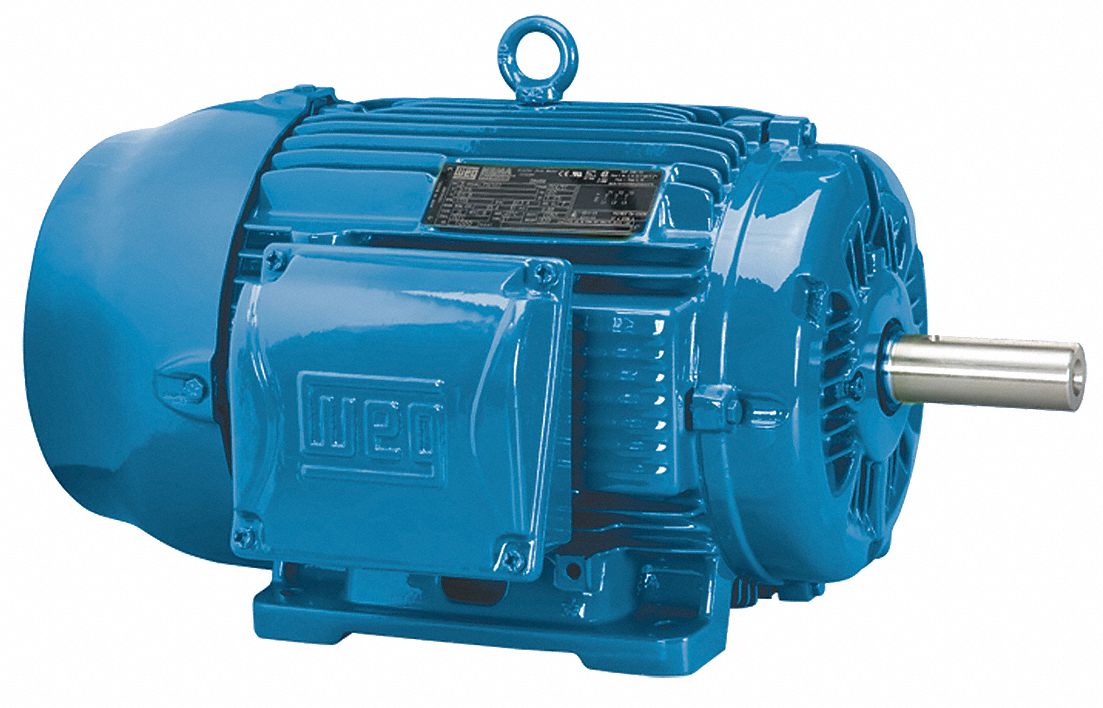

General Purpose Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 1 175 No of Speeds 1 Voltage 230/460V AC Full Load Amps 8.
83/4.
41 A 213T Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Hz Motor Service Factor 1.
25 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base- Alternate Part Numbers- 6AJA7- 00312ET3E213TW22- 6AJA7
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
ZZ
Manufacturer Name:
00312ET3E213T-W22
Manufacturer Part Number:
WEG
